Home >> Oldsmobile >> 1998 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> F/P INJR Fuse

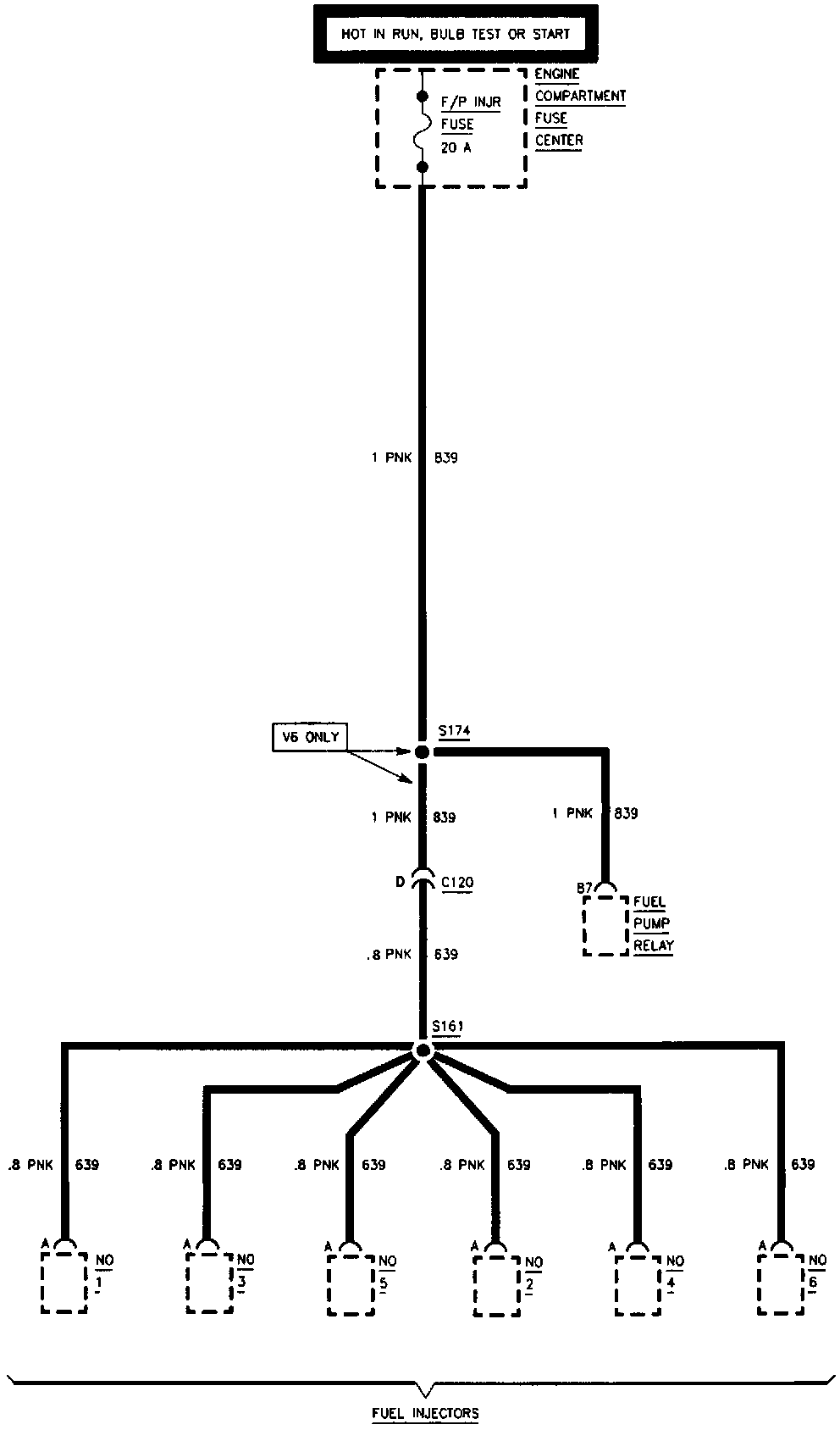

F/P INJR Fuse

F/P INJR Fuse:
