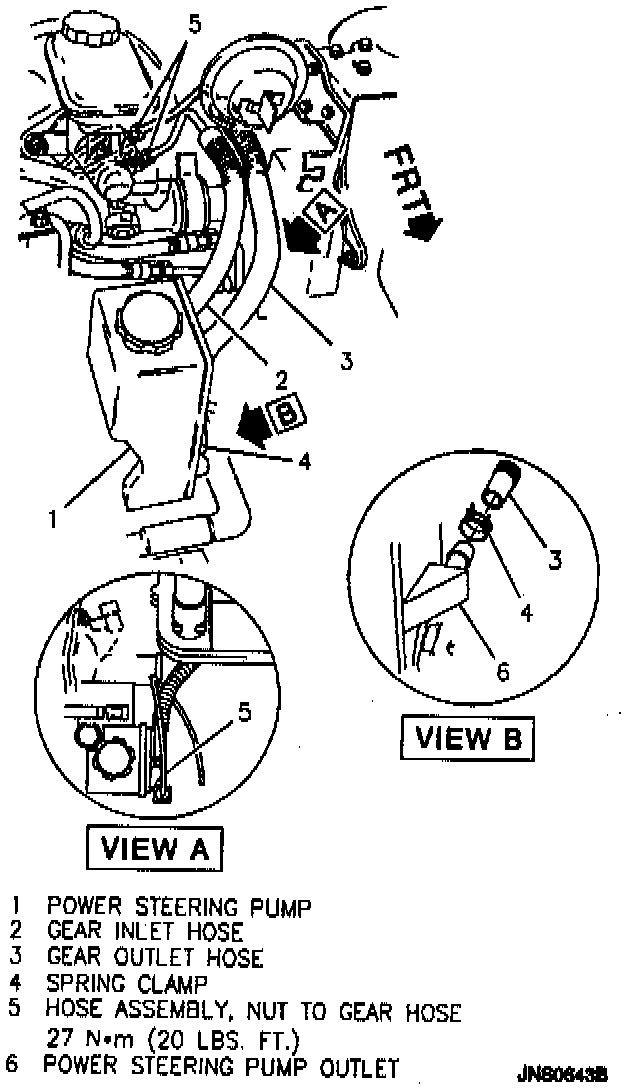

Gear Inlet Pipe/Hose

REMOVAL
Remove or disconnect the following:
1. Line retainer (if applicable).
2. Gear inlet pipe from pump.
3. Gear inlet pipe/hose from the steering gear.
4. Gear inlet pipe/hose from vehicle.

INSTALLATION
Install or connect the following:
1. Gear inlet pipe/hose into position on vehicle.
2. Gear inlet pipe/hose to the steering gear.
^ Tighten pipe/hose assembly to 27 Nm (20 ft. lbs.).
3. Gear inlet pipe to pump.
^ Tighten pipe to 27 Nm (20 ft. lbs.).
4. Line retainer (if applicable).
^ Bleed air from system.
