Fog Lamp Replacement

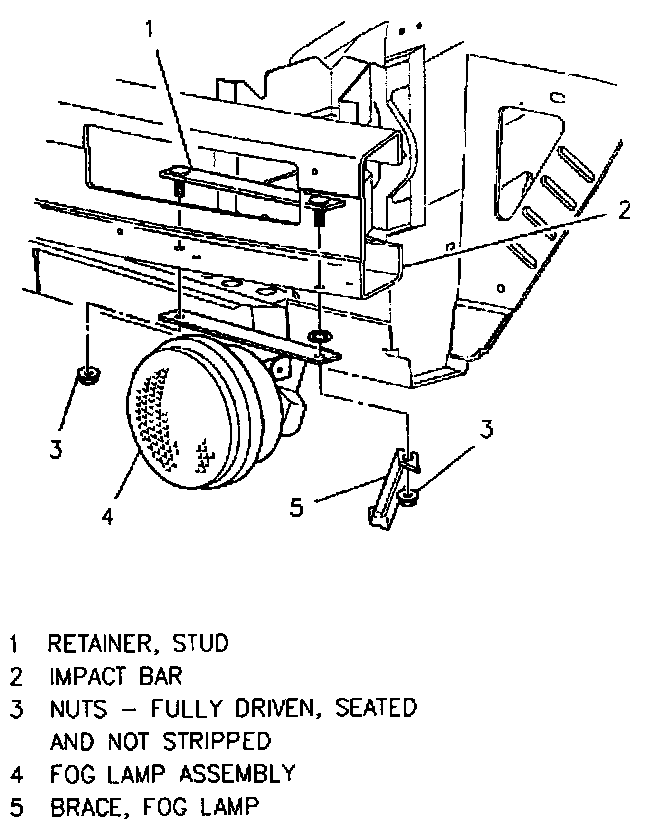

Fog Lamp Mounting (Pontiac):

Fog Lamp Mounting (Oldsmobile):

REMOVE OR DISCONNECT
1. Nut to top of lamp.
2. Electrical connector.

INSTALL OR CONNECT
1. Electrical connector.
2. Nuts to top of bracket.

ADJUST
^ Fog lamp aim. Refer to Foglamp Aiming. Adjustments
