Blower Motor and Fan Assembly

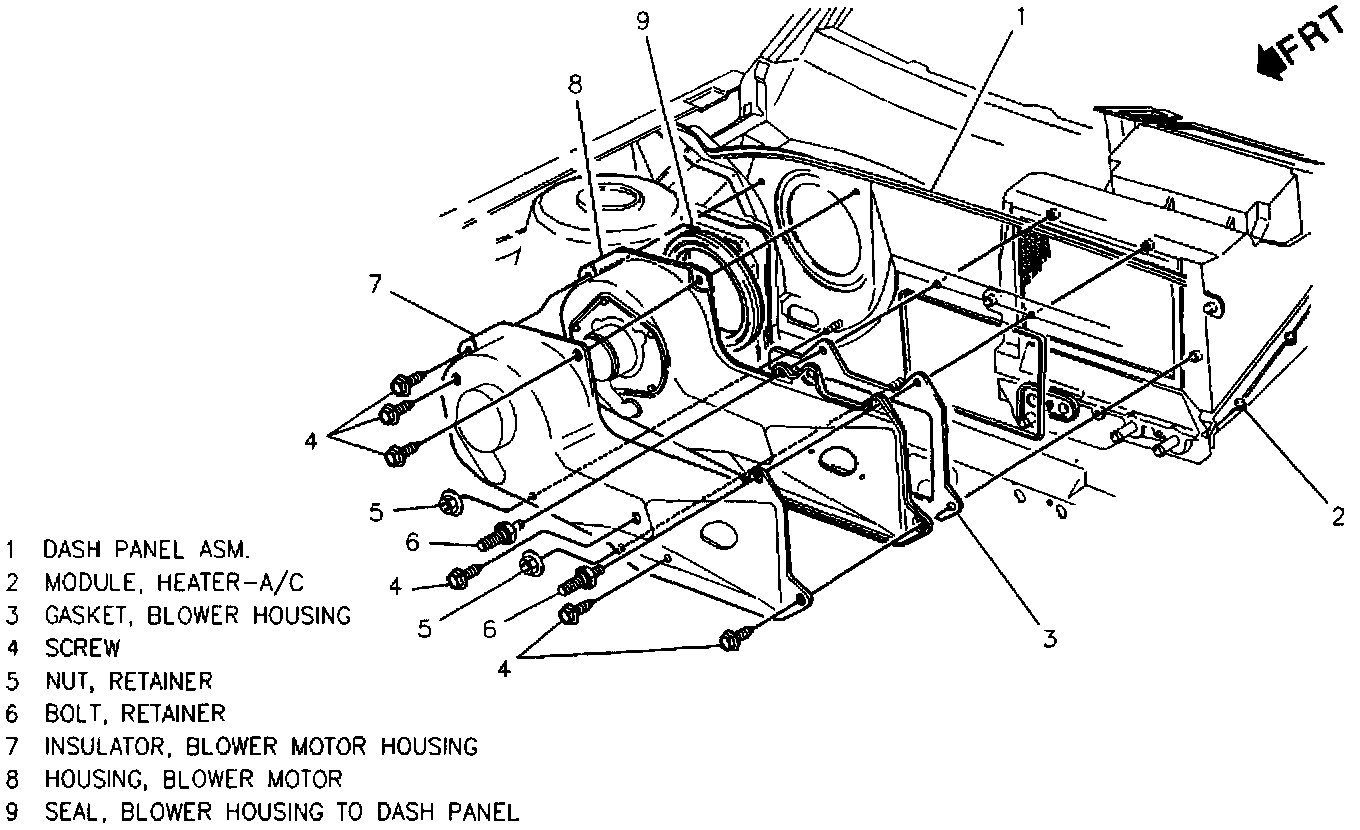

Blower Assembly:

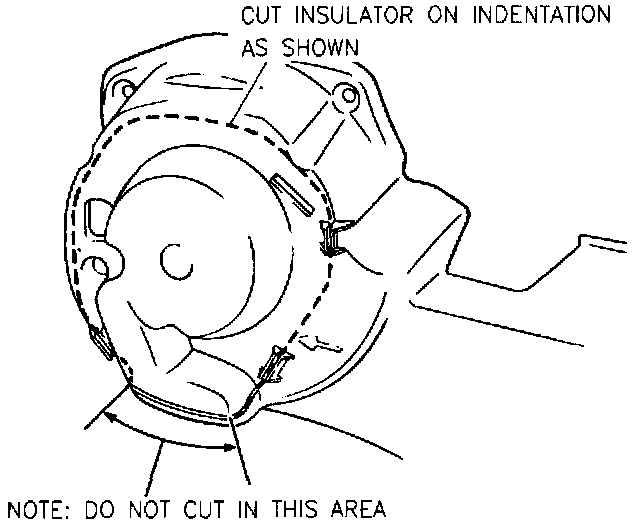

Blower Case Insulator Cut Diagram:

Remove or Disconnect

1. Negative battery cable.
2. Serpentine belt.
3. Generator, set aside.
4. Position engine wiring hamess aside.
5. Blower motor electrical connection.
6. Partially cut blower case cover as indicated on cover.

Important
^ Cutting completely around cover IS NOT required.
^ Cover thickness is approx 2 mm (1/8 inch). Make cut just through thickness of cover. Excessive depth of cut may damage cooling tube.

7. Swing cut out portion of cover down.
8. Blower motor cooling tube.
9. Blower motor retaining screws.
10. Blower motor assembly.

Install or Connect

1. Blower motor assembly.
2. Retaining screws.

Tighten
^ Screws to 5 N.m (44 lb in).

3. Blower motor cooling tube.
4. Blower motor cover using 3 retaining clips.
5. Reposition engine wiring hamess.
6. Electrical connections.
7. Generator.
8. Serpentine belt.
9. Negative battery cable.

Tighten
^ Bolt to 16 N.m (12 lb ft).
