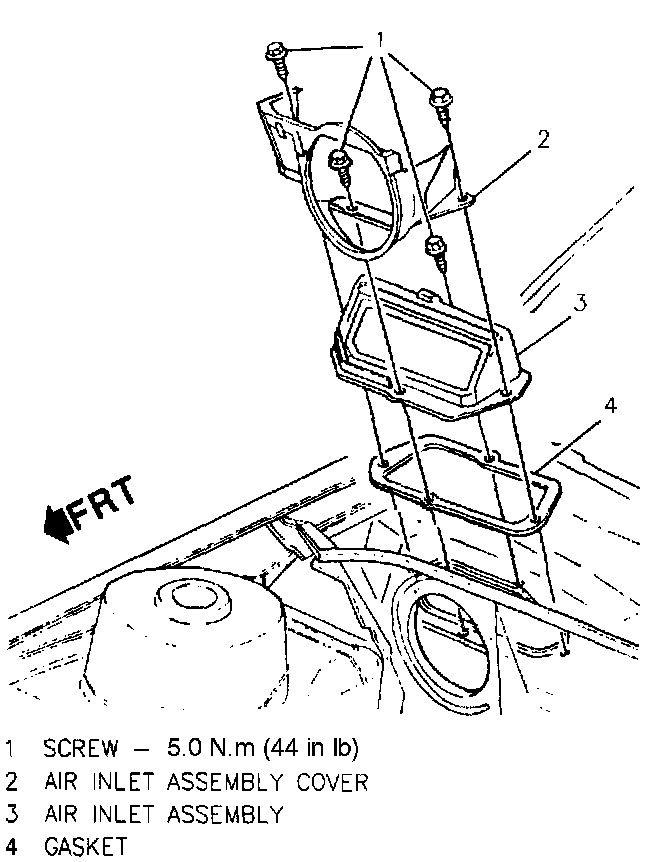

Air Inlet Assembly

Remove or Disconnect

1. Wiper arms.
2. Raise hood.
3. Cowl panel.
4. Air inlet assembly.

Install or Connect

1. Air inlet assembly.

Tighten
^ Screws to 5 N.m (44 lb in).

2. Cowl panel.
3. Close hood.
4. Wiper arms - realign to park position.
