Muffler: Service and Repair

REMOVAL PROCEDURE





1. Raise the vehicle. Refer to Vehicle Lifting.

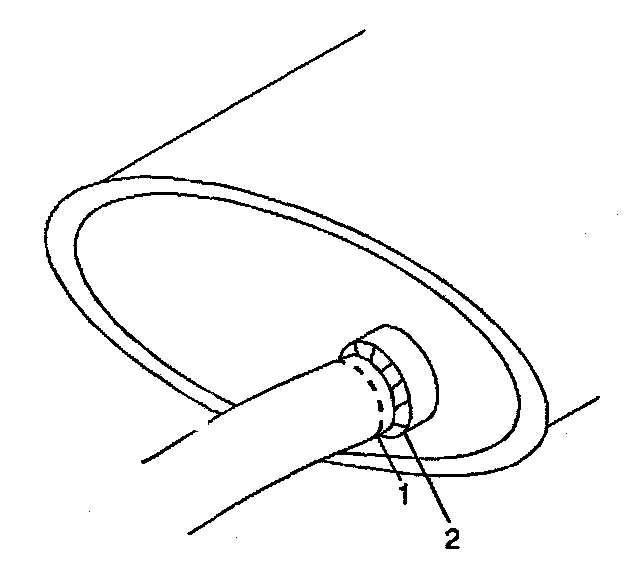

2. Cut the intermediate pipe (1) at the muffler (2) near the weld.

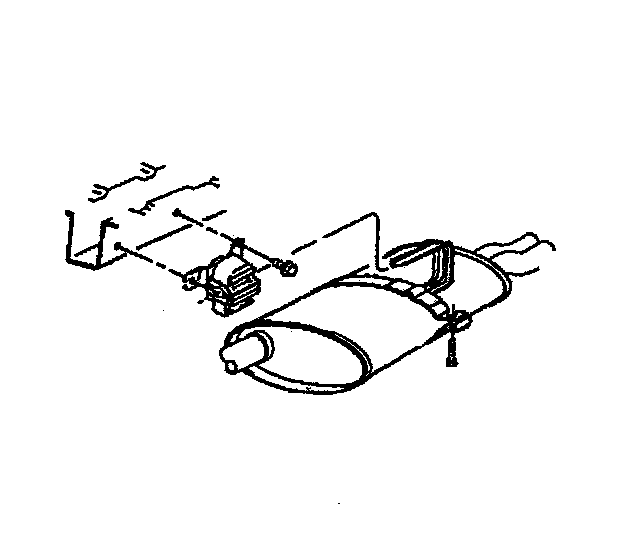

3. Remove the muffler from the hangers.

INSTALLATION PROCEDURE

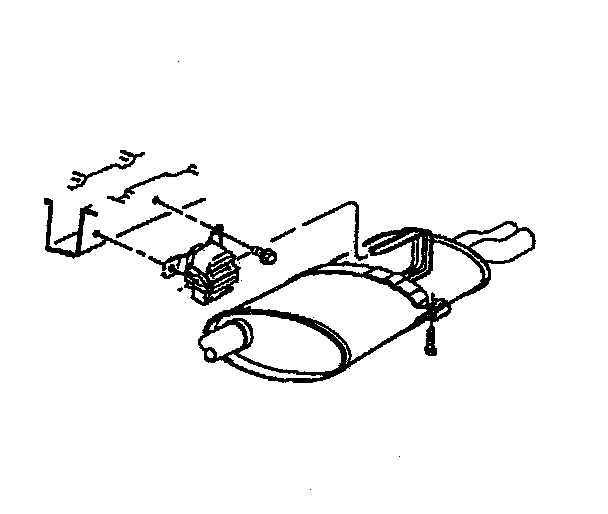

1. Install the muffler to the hangers.

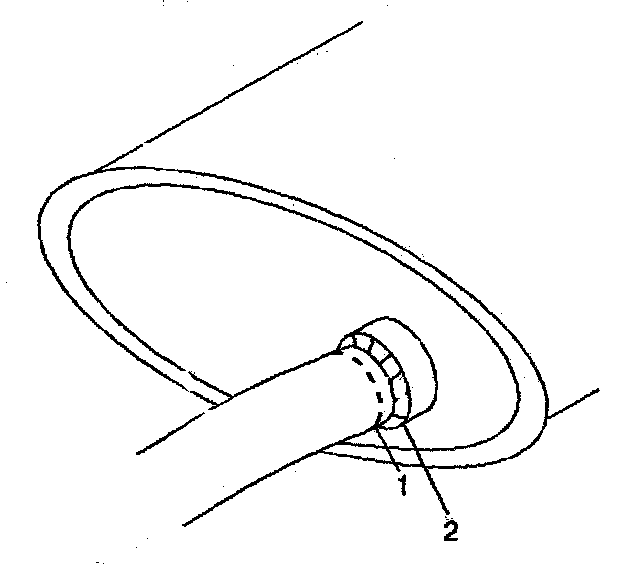

2. Weld the muffler (2) to the intermediate pipe (1).
3. Lower the vehicle.
