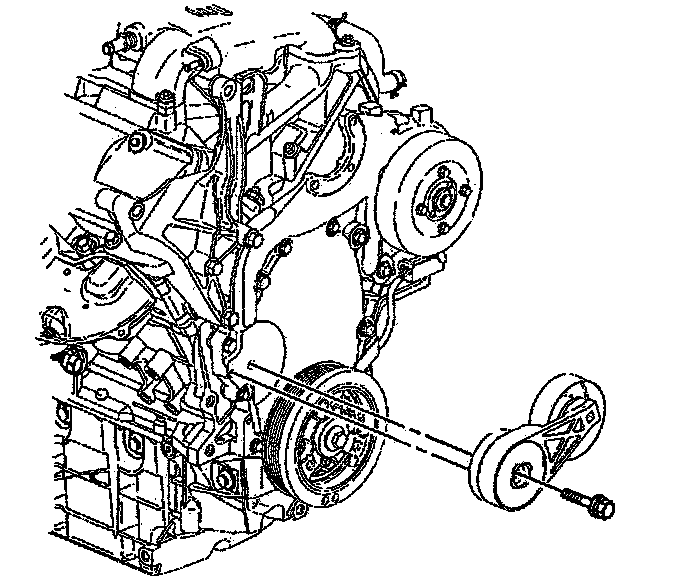

Drive Belt Tensioner Installation

1. Install the drive belt tensioner.
2. install the drive belt tensioner bolt.
^ Tighten the drive belt tensioner bolt to 50 Nm(37ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
