Camshaft Bearing Removal

^ Tools Required

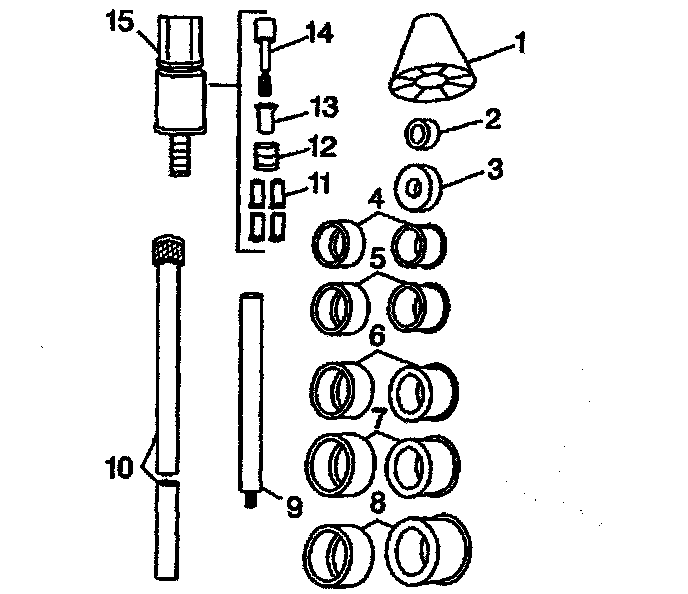

- J 3049 Camshaft Bearing Remover/Installer





1. Select the expander assembly and driving washer.
2. Assemble the J 33049.

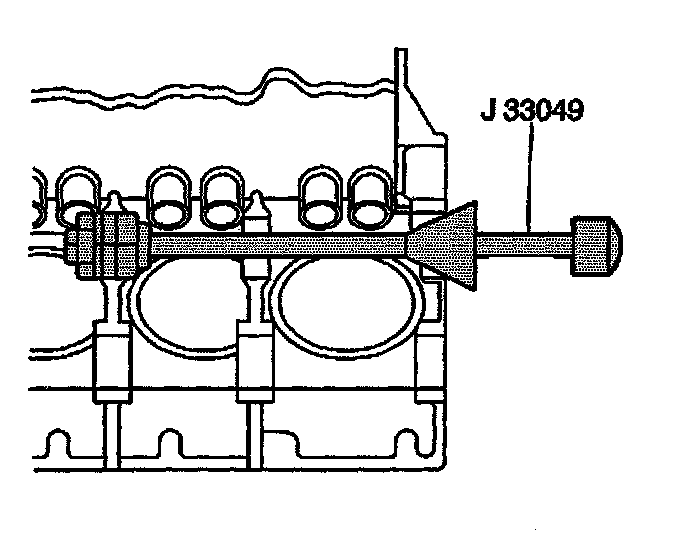

3. Drive out the camshaft bearings. Use the J 33049.
