Control Valve Body Fluid Passages
Control Valve Body Fluid Passages

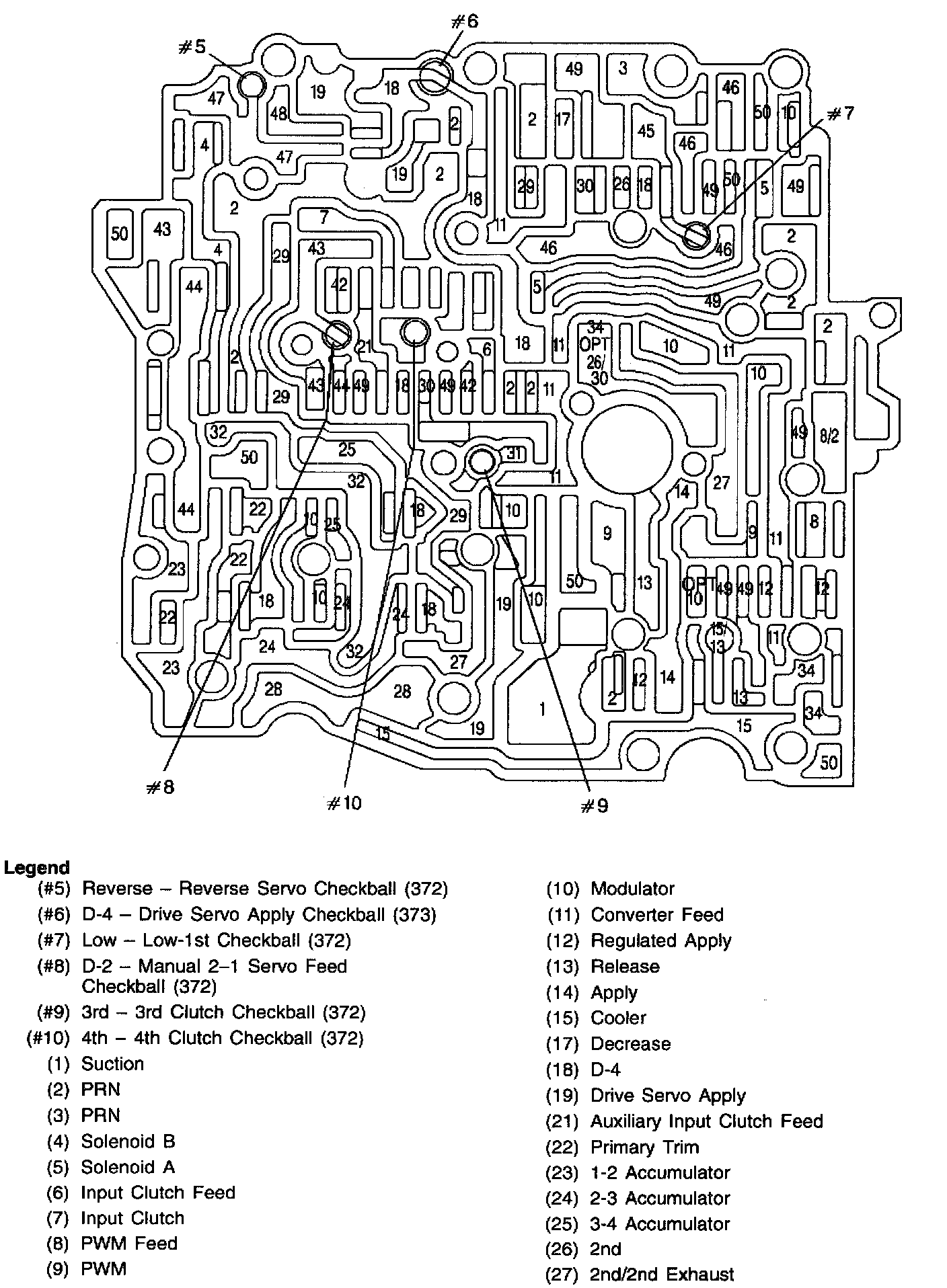

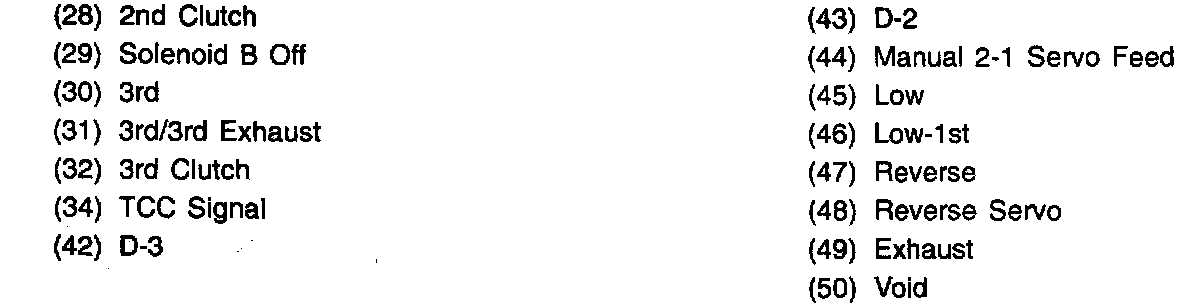

CONTROL VALVE BODY FLUID PASSAGES (OIL PUMP SIDE)

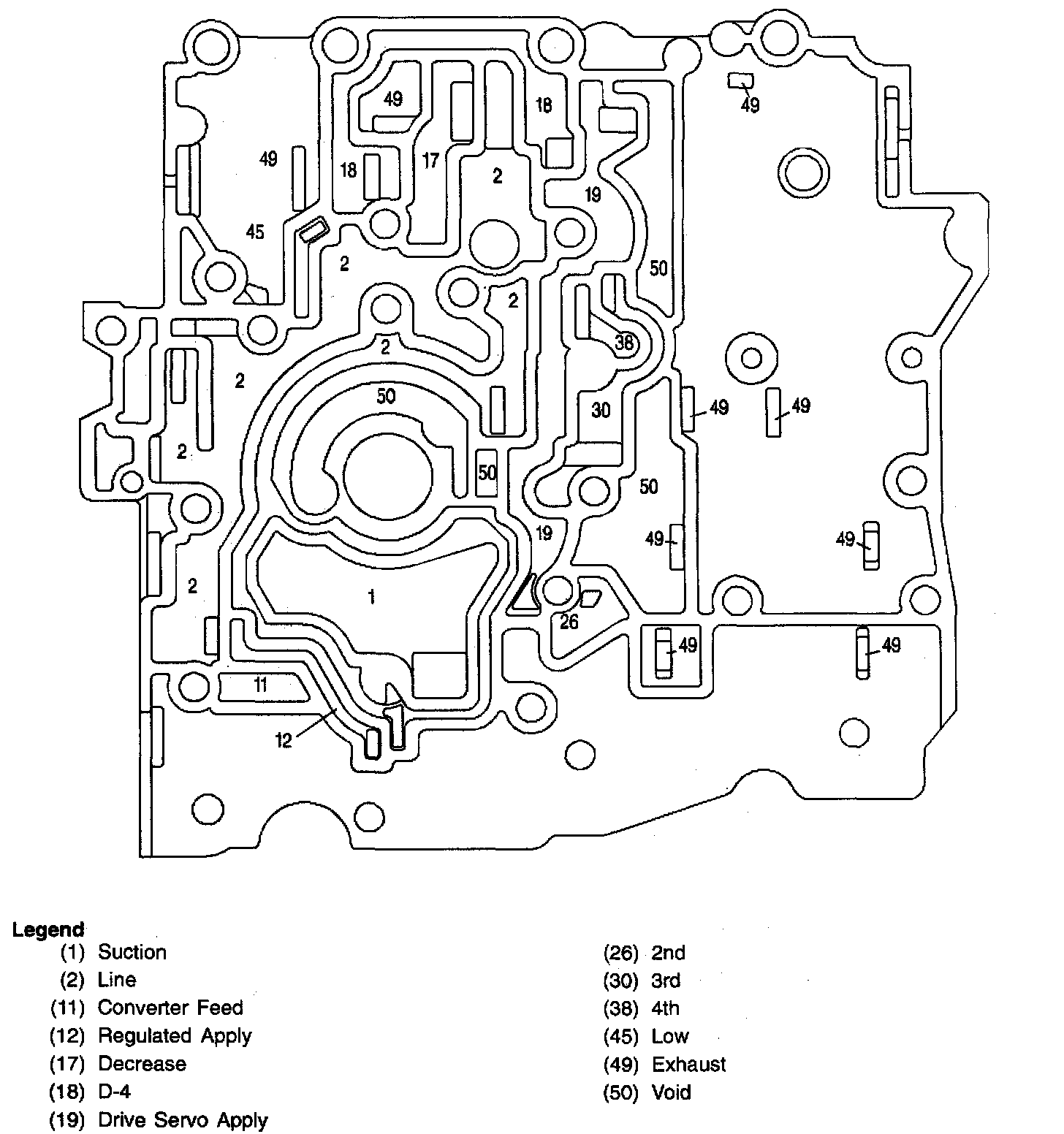

CONTROL VALVE BODY FLUID PASSAGES (
CHANNEL PLATE
SIDE)
