Hydraulic Control Assembly - Antilock Brakes: Diagrams

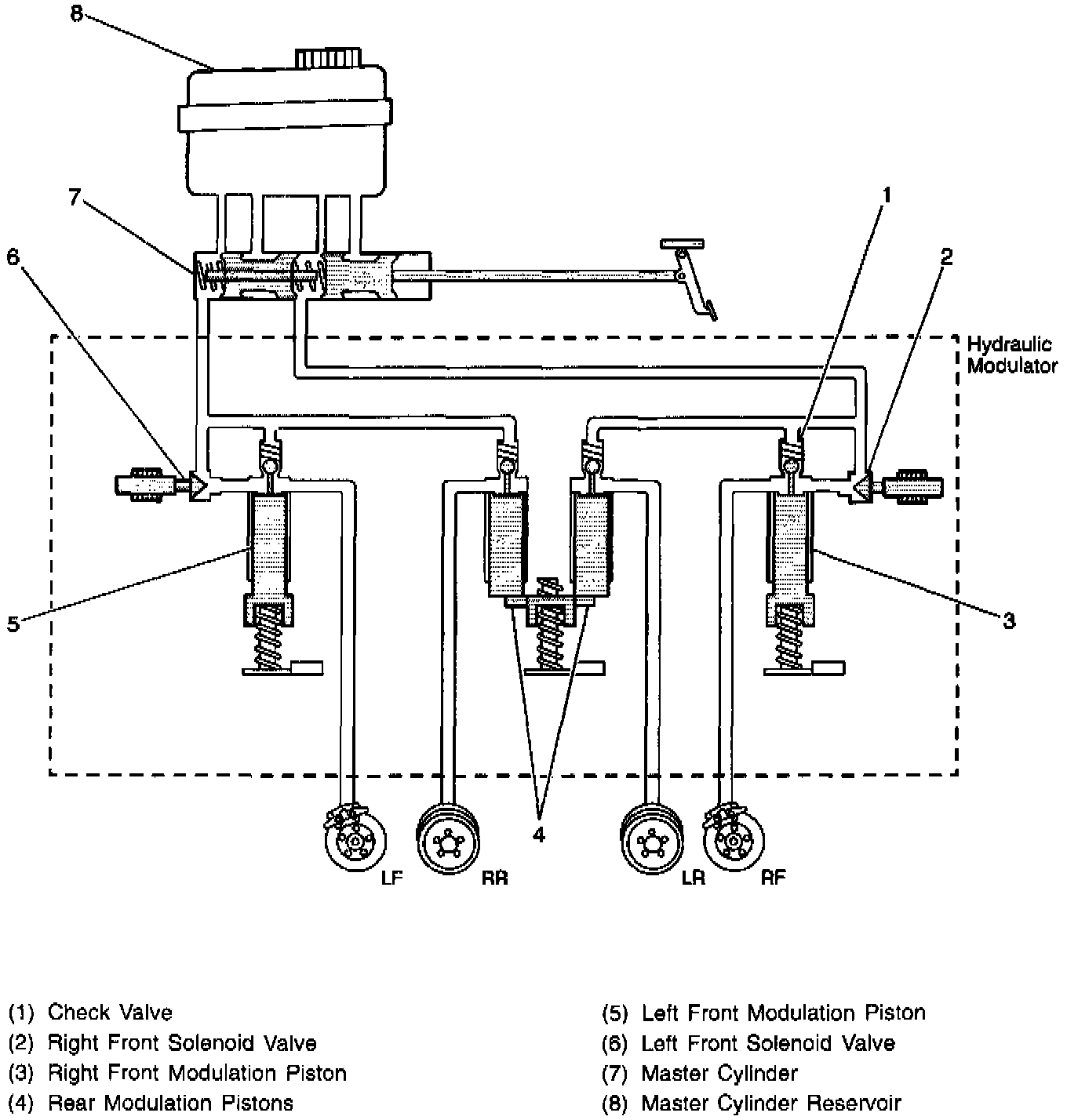

BPMV Hydraulic Flow Chart (Normal Braking Mode):
