Left Side

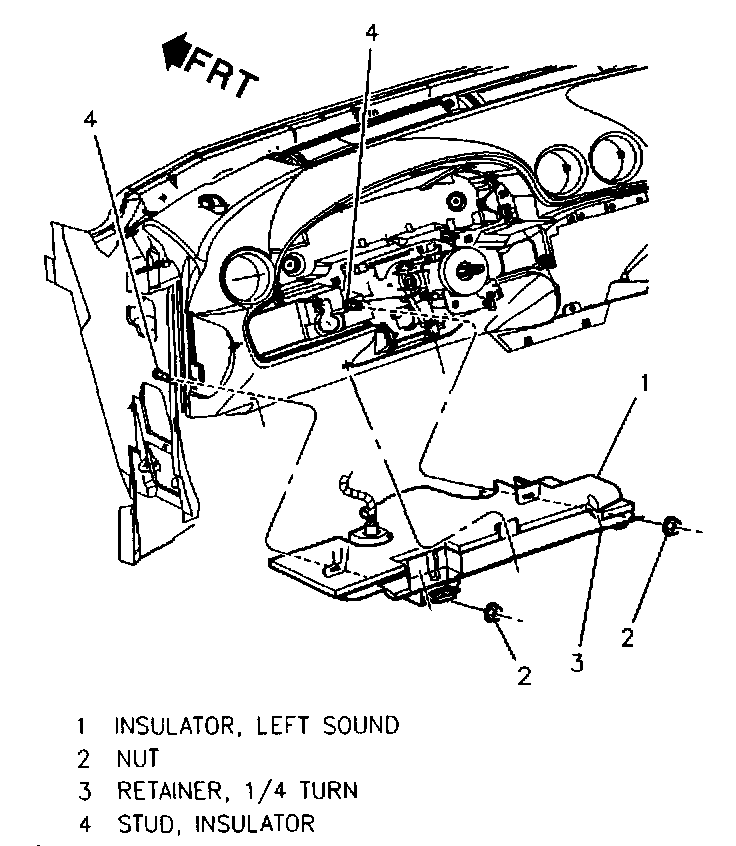

Left Sound Insulator:

REMOVE OR DISCONNECT
1. 1/4 turn retainer to I/P.
2. Nut to accelerator pedal assembly.
3. Courtesy lamp.
4. Left sound insulator

INSTALL OR CONNECT
1. Left sound insulator
2. Courtesy lamp.
3. Nut to accelerator pedal assembly.
4. 1/4 turn retainer to I/P
