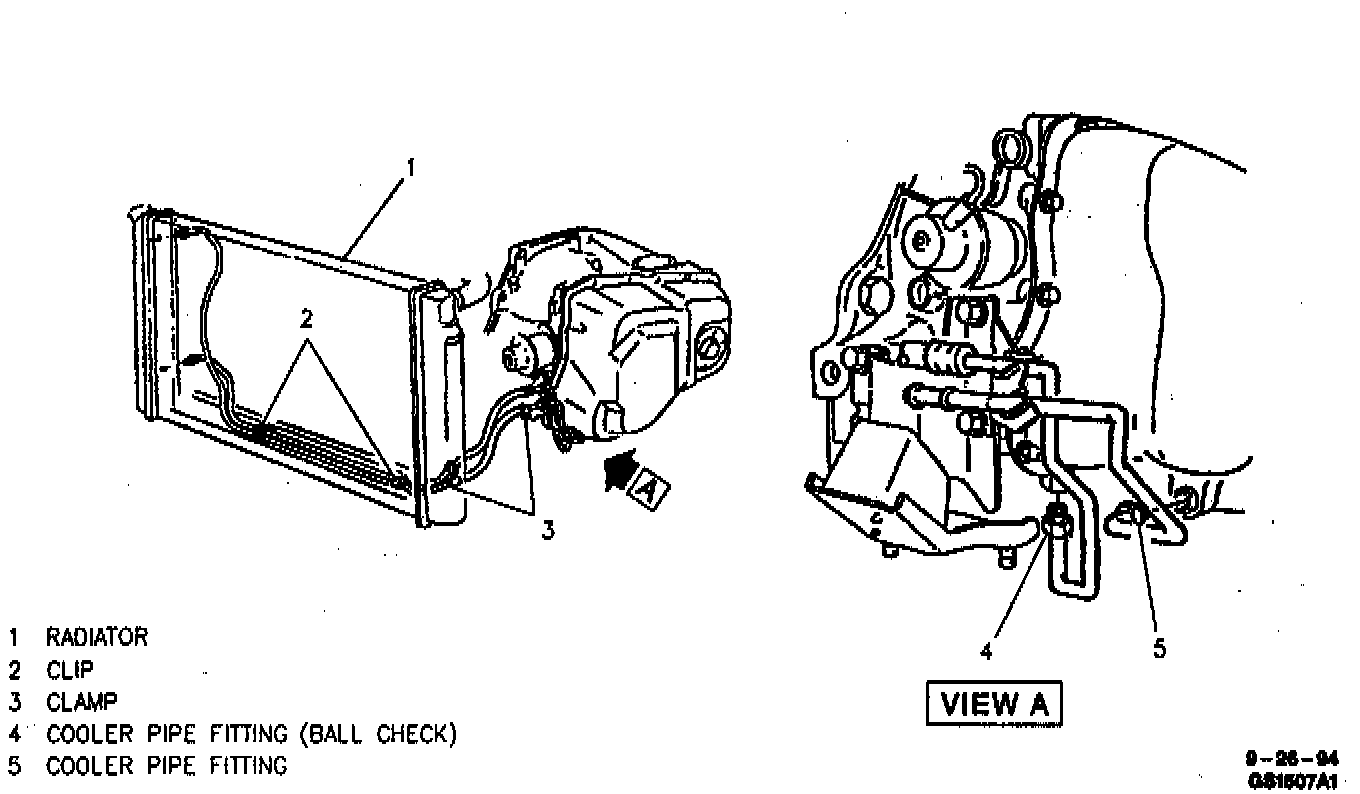

Fluid Line/Hose: Service and Repair

REMOVE OR DISCONNECT
1. Transaxle cooler hose clamps and hose from pipe.
2. Bolt and clamp from motor mount.
3. Pipe from radiator.
4. Pipe from transaxle

INSTALL OR CONNECT
1. Pipe to transaxle.
^ Tighten ball check fitting to 52 Nm (38 ft. lbs.).
^ Pipe fitting to 38 Nm (28 ft. lbs.).
2. Pipe to radiator.
^ Tighten pipe fitting to 38 Nm (28 ft. lbs.).
3. Clamp and bolt to motor mount.
4. Hose and clamps.
^ Tighten clamps to 2 Nm (16 inch lbs.).
