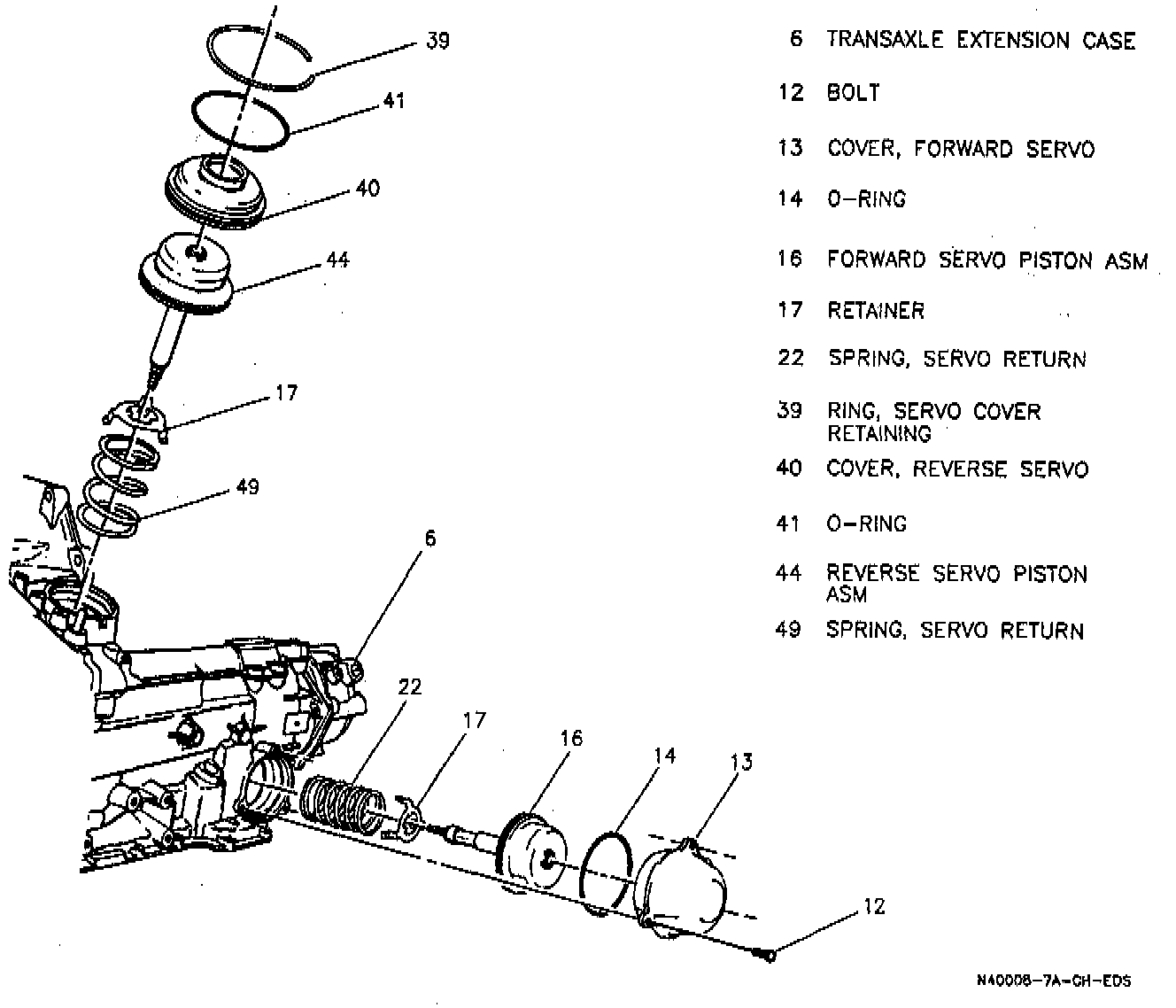

Forward Servo Assembly

REMOVE OR DISCONNECT
1. Attaching bolts.
2. Servo cover, servo piston assembly, sealing ring, and servo spring.

INSTALL OR CONNECT
1. Servo spring, sealing ring, servo piston assembly and servo cover.
2. Attaching bolts.
^ For disassembly of the servo piston assembly, refer to TRANSMISSION UNIT REPAIR.
