Home >> Oldsmobile >> 1997 >> Regency V6-3.8L VIN K >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Accessory Delay Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

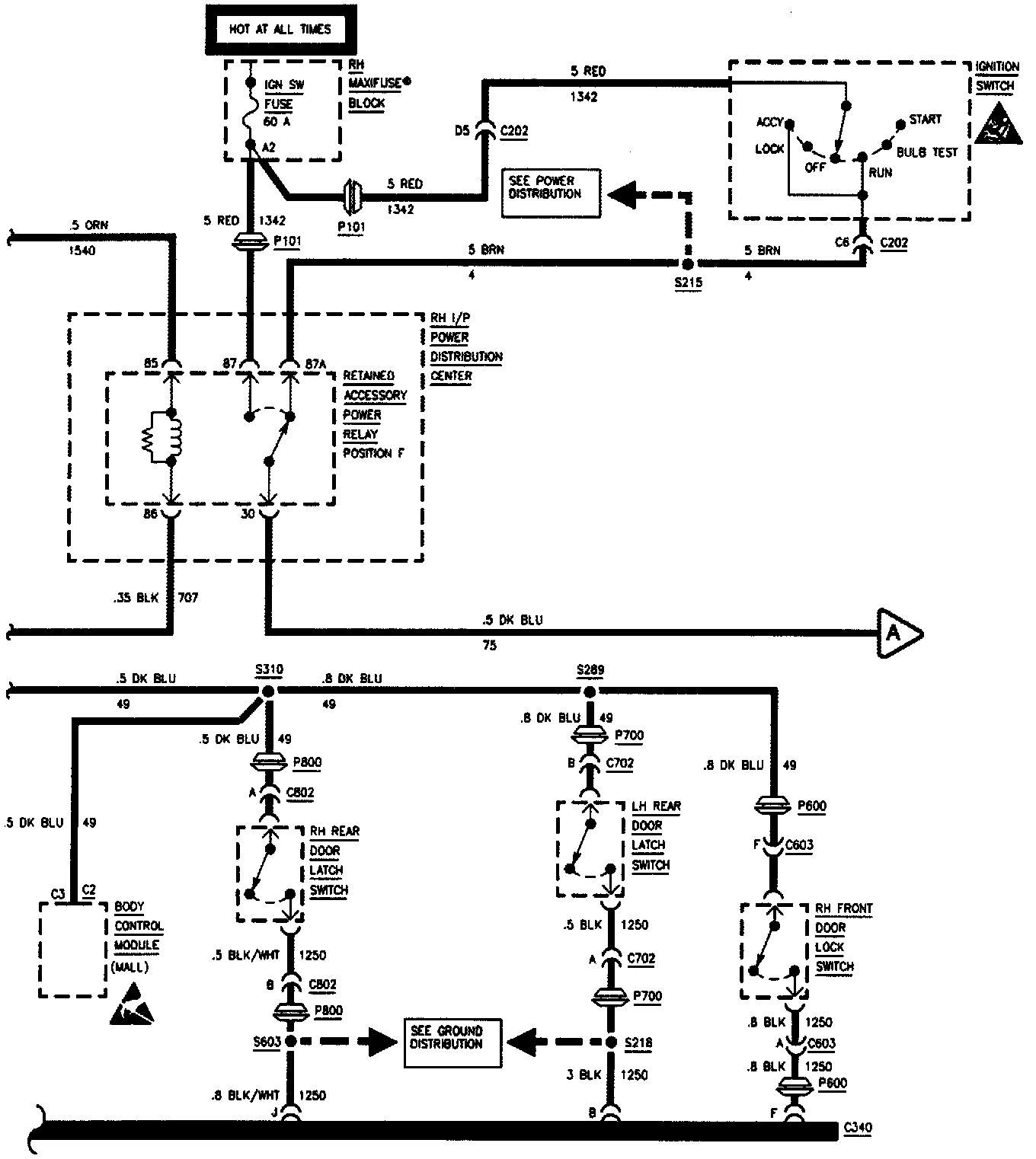

Retained Accessory Power:

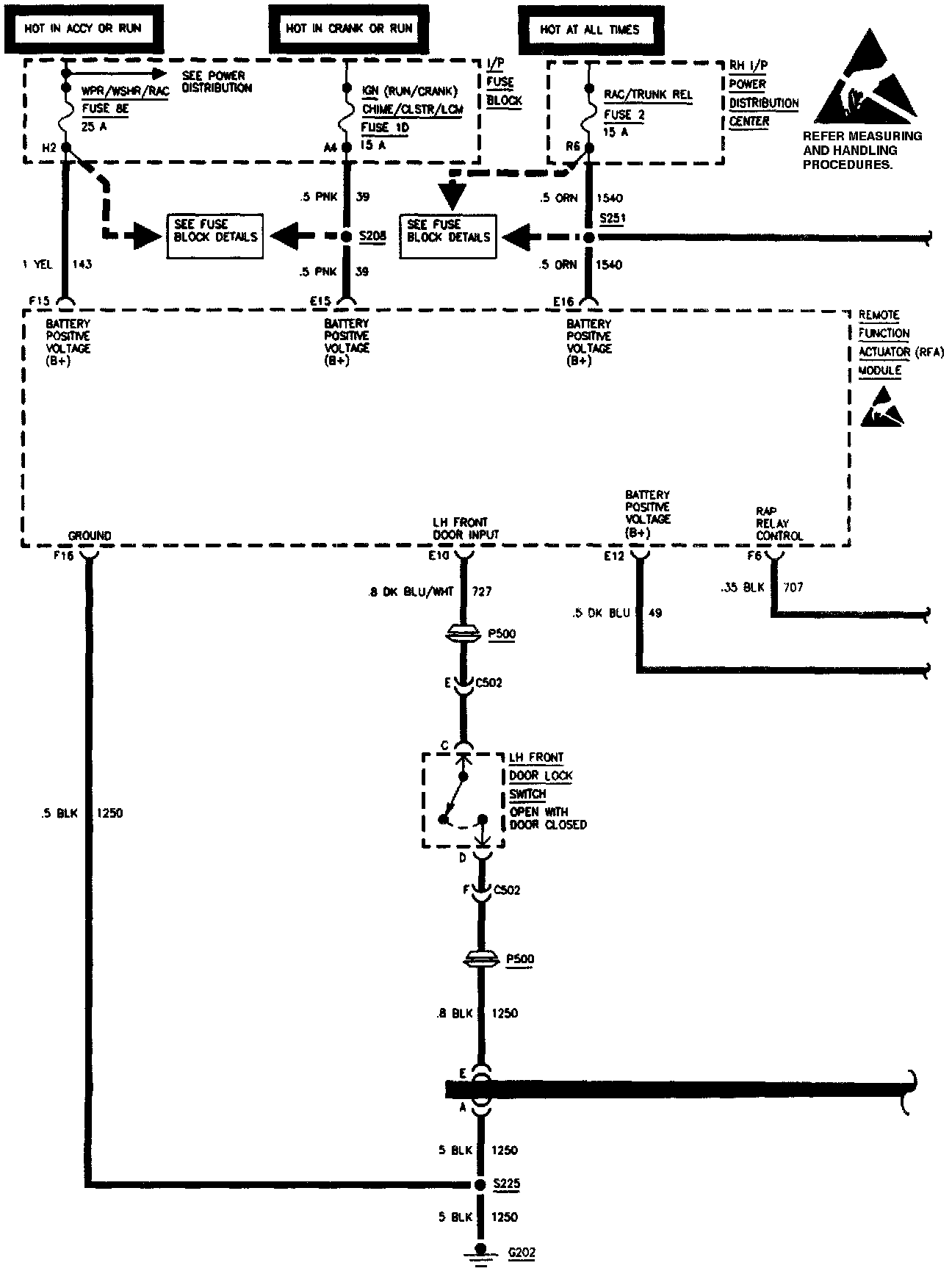

Retained Accessory Power:

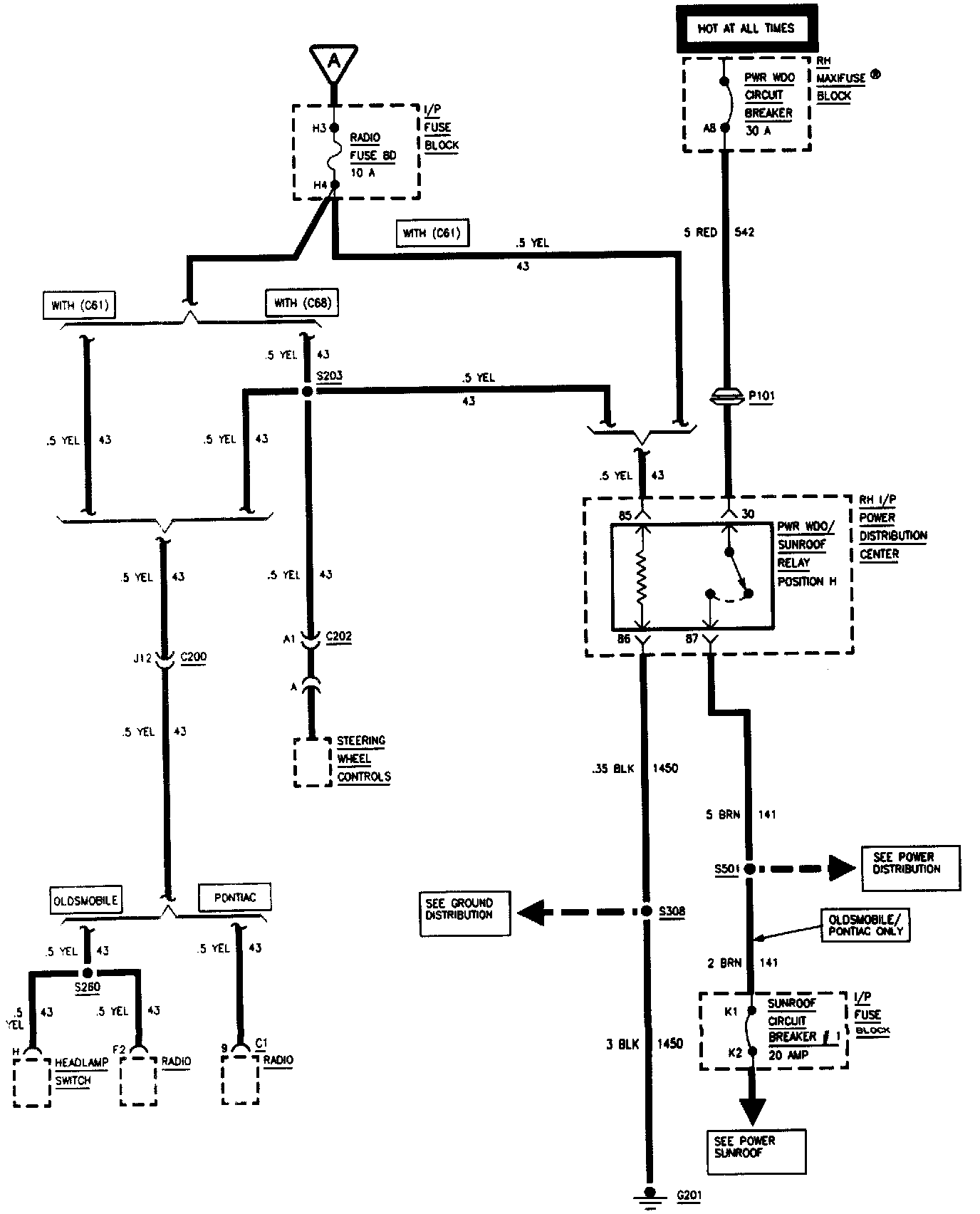

Retained Accessory Power:
