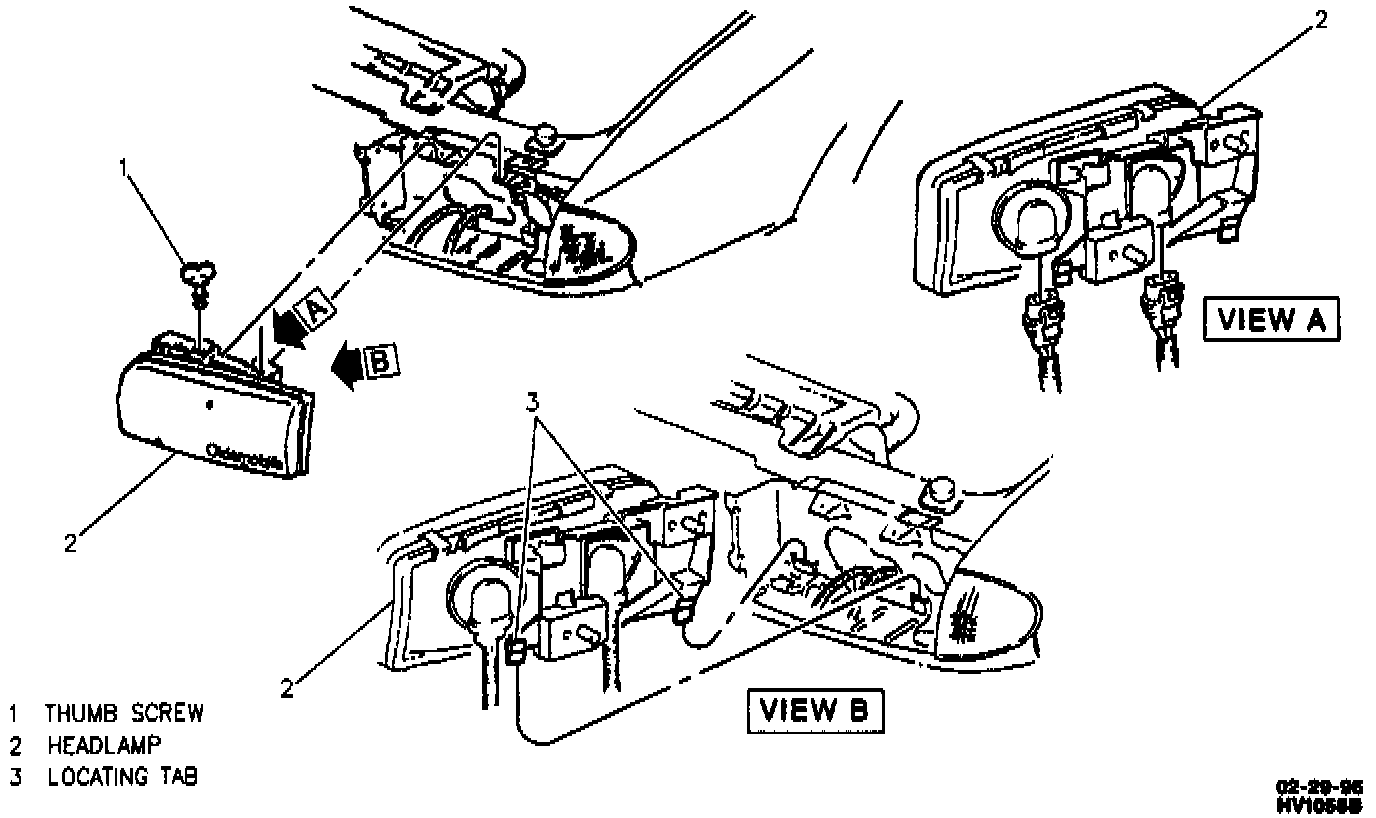

Headlamp Bulb: Service and Repair






Remove or Disconnect
1. Headlamp.
2. Socket from headlamp by turning counterclockwise.
3. Bulb from socket.

Install or Connect
1. Bulb to socket.
2. Socket to headlamp by pressing and turning clockwise.
3. Headlamp.
