Hydraulic Thermo Valve: Service and Repair

^ Tool Required:
- J 34094-A Thermo Element Height Gage

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Fluid and filter.

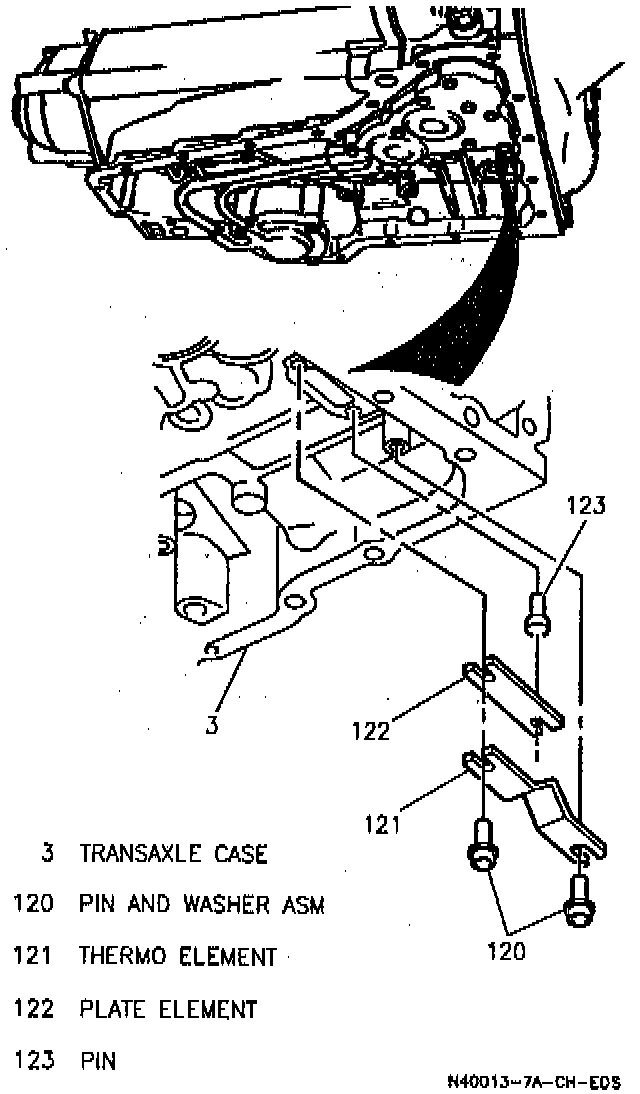

DISASSEMBLE
^ Washers and pins.
^ Thermo element.
^ Plate.

INSTALL OR CONNECT
1. Set middle thermo pin height with J 3409-A.
2. Element plate.

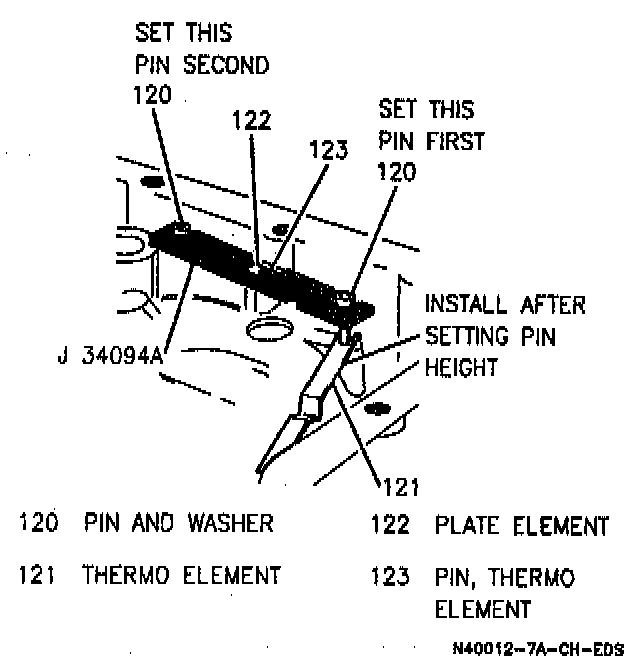

3. Pin and washer assemblies using J 34091A to set the height of both washers. First, set the pin that is furthest from the accumulators. Then set the other pin. This will ensure that both pins will be set correctly.
4. Thermo element between the two pins without bending the element too much. "V," in Thermo Element must contact the element plate.
5. Filter, new gasket, oil pan.
6. Negative battery cable.

Adjust
^ Fluid level.
