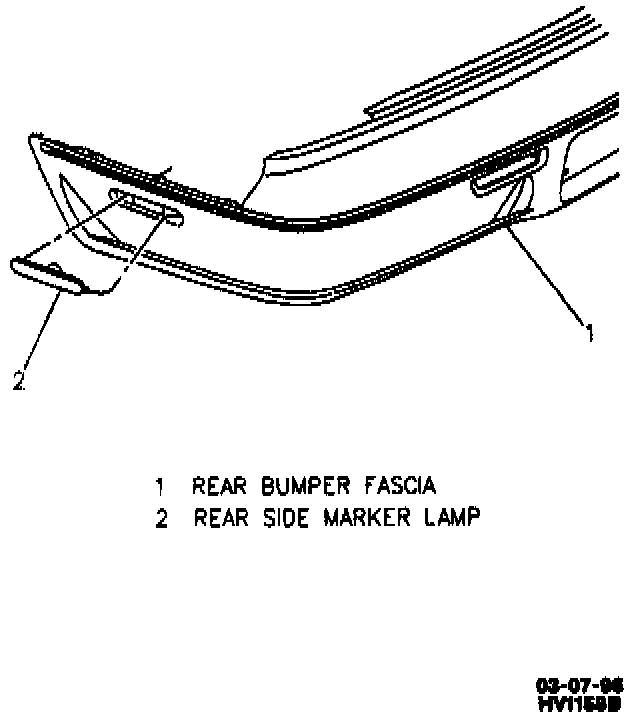

Marker Lamp Replacement - Rear Side

Description:

Remove or Disconnect
1. Bulb/socket from rear side marker lamp by turning counterclockwise.
2. Release locking tab at rear of lamp.
3. Pull outboard and rearward to release tab. Rear side marker lamp.

Install or Connect
1. Rear side marker lamp.
2. Press to engage locking tab at rear of lamp.
3. Socket to rear side marker lamp by turning clockwise.
