Home >> Oldsmobile >> 1997 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Steering Wheel Controls

Steering Wheel Controls

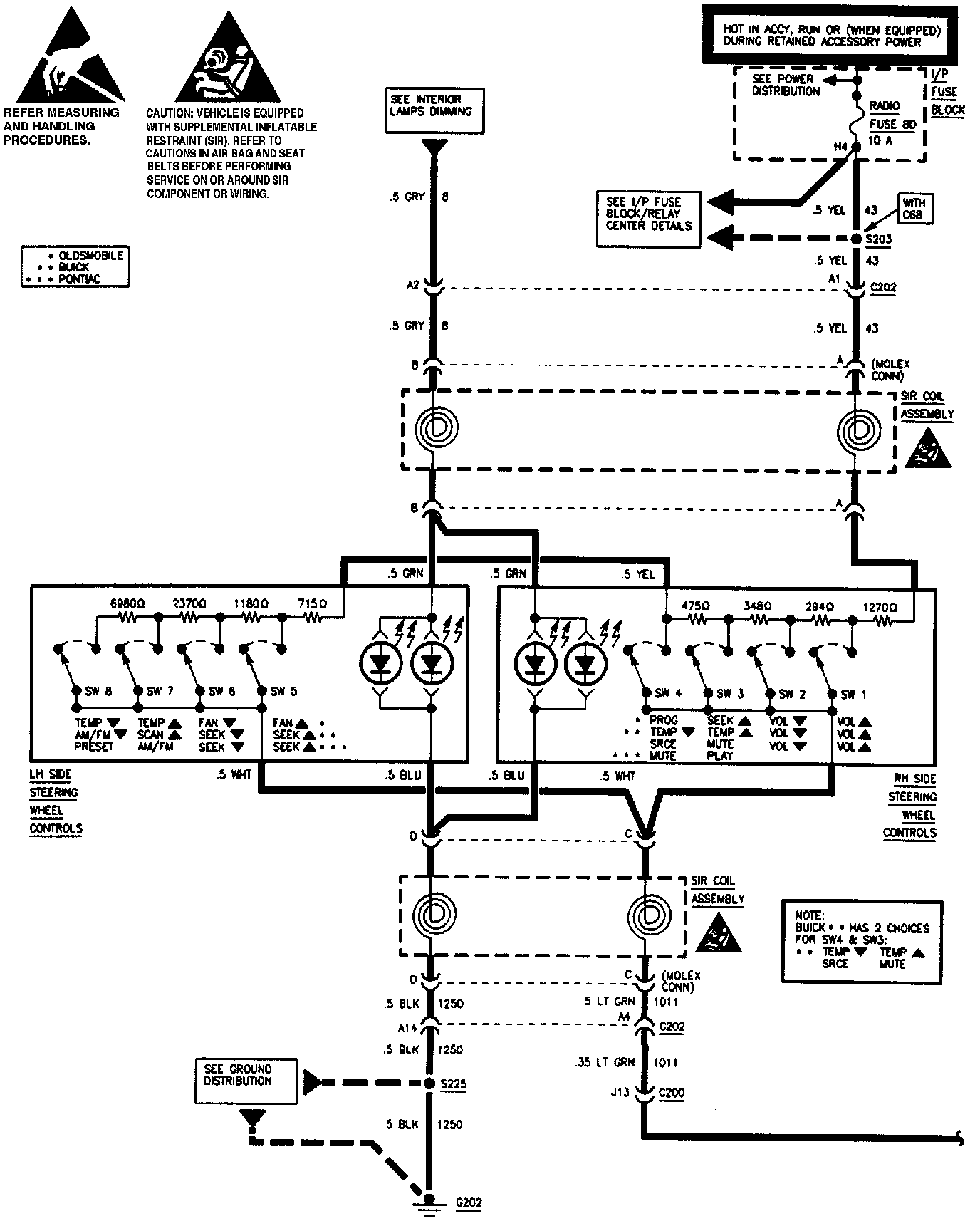

Steering Wheel Controls (Part 1 Of 2):

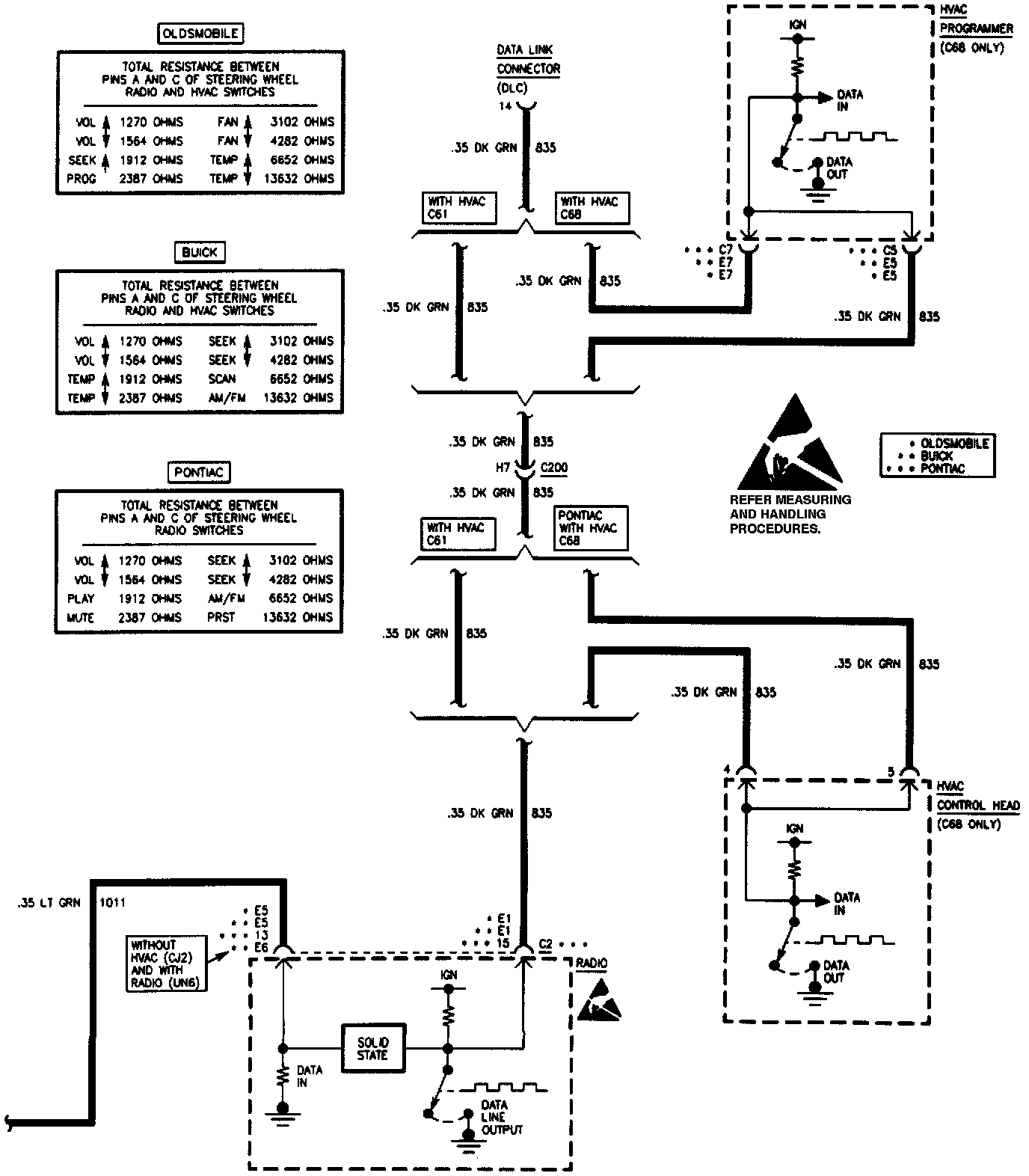

Steering Wheel Controls (Part 2 Of 2):
