Wiper Motor Linkage: Service and Repair

Description:

Remove or Disconnect

Tool Required:
J 39232 Wiper Transmission Separator

1. Wiper arm and blade assemblies.
2. Washer hose (6).
3. Air inlet screen assembly (C).

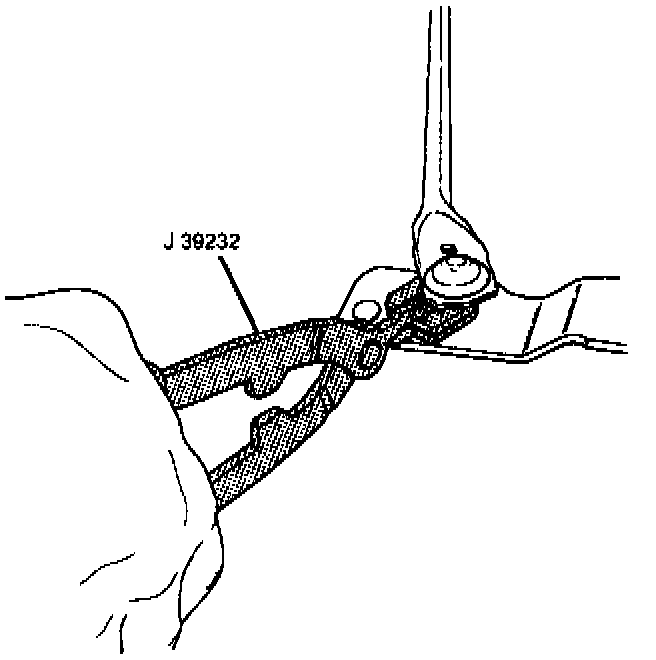

4. Transmission drive link (5) socket from wiper motor crank arm (T) using J 39232.
5. Six screws (17).
6. Transmission assembly (16) by guiding it through access hole in shroud upper panel (R).

Install or Connect

Tool Required:
J 39529 Wiper Transmission Installer

1. Transmission assembly (16) by positioning assembly in plenum chamber through the shroud upper panel (R) openings.
2. Six screws (17).

Tighten
^ Screws (17) to 8 Nm (71 lb. in.).

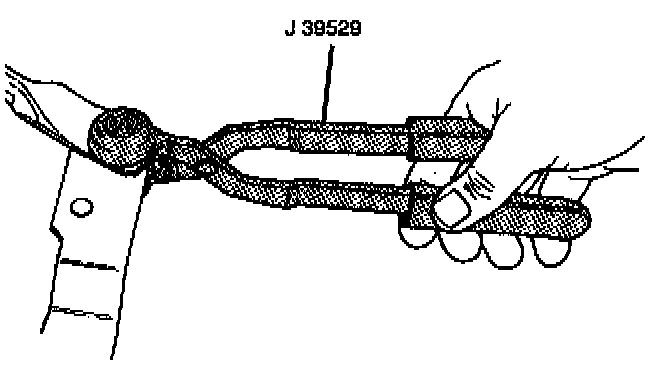

3. Transmission drive link (5) socket to wiper motor crank arm (T) ball using J 39529. Be sure socket is fully seated on ball.
4. Air inlet screen assembly (C).
5. Washer hose (6).
6. Wiper arm and blade assemblies.
