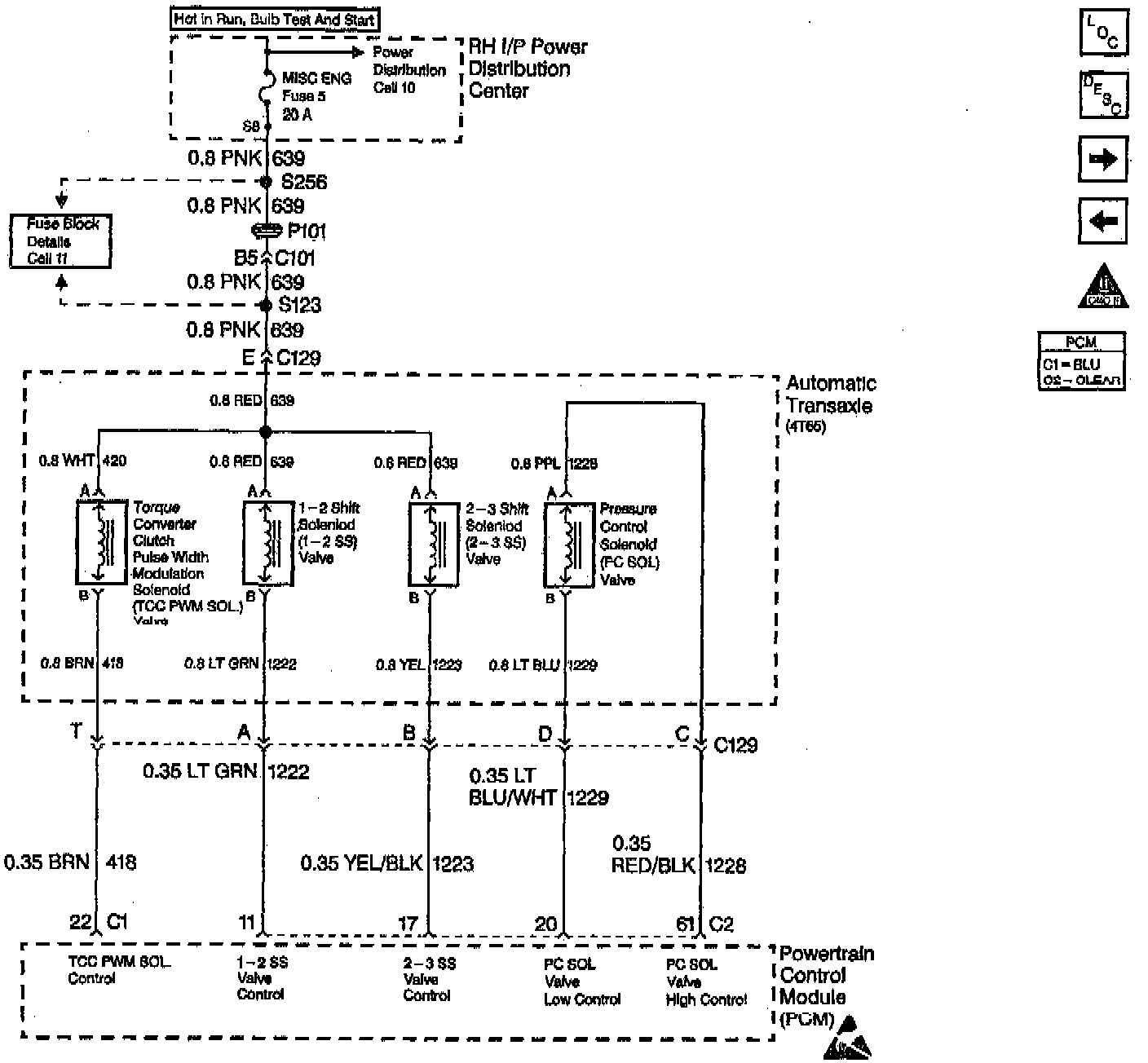

Brake Switch, TCC PWM, 1-2 Shift, 2-3 Shift, and PC Solenoids
Brake Switch, TCC PWM, 1-2 Shift, 2-3 Shift, and PC Solenoids
Wiring Diagram:
