4T60-E Automatic Transaxle

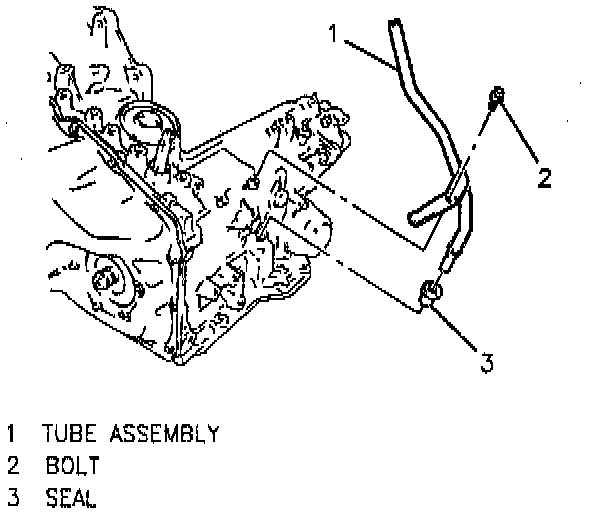

REMOVE OR DISCONNECT
1. Bolt from tube to transaxle case.
2. Raise vehicle and suitably support.
3. Tube and seal from transaxle.

INSTALL OR CONNECT
1. New seal into transaxle.
2. Tube into transaxle, using care to avoid seal darnage.
3. Lower vehicle.
4. Bolt through tube bracket into transaxle case.
^ Tighten bolts to 20 Nm (15 ft. lbs.).
