On-Vehicle Service

REMOVE OR DISCONNECT
1. Raise vehicle and suitably support.
2. Electrical connectors and vent tube connector.
3. Air tube from air dryer.

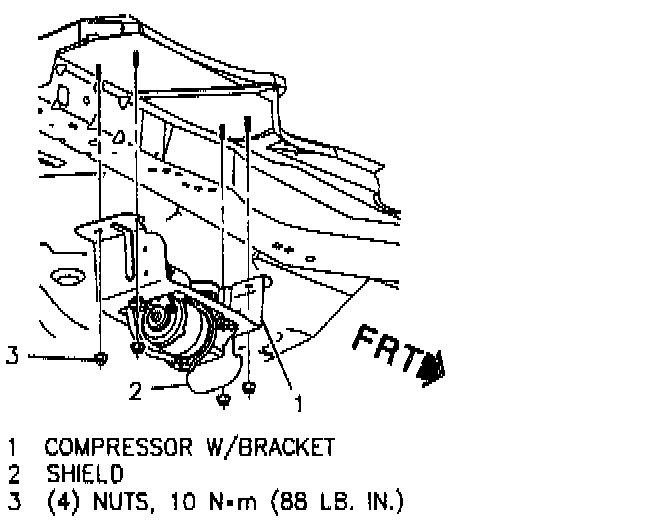

4. Four Nuts securing bracket and compressor to right rear underbody.

INSTALL OR CONNECT
1. Bracket and compressor to right rear underbody.
^ Tighten bracket to Underbody Nuts to 10 Nm (88 inch lbs.).
2. Air tube to air dryer.
3. Electrical connectors and vent tube connector.
4. Lower vehicle.
