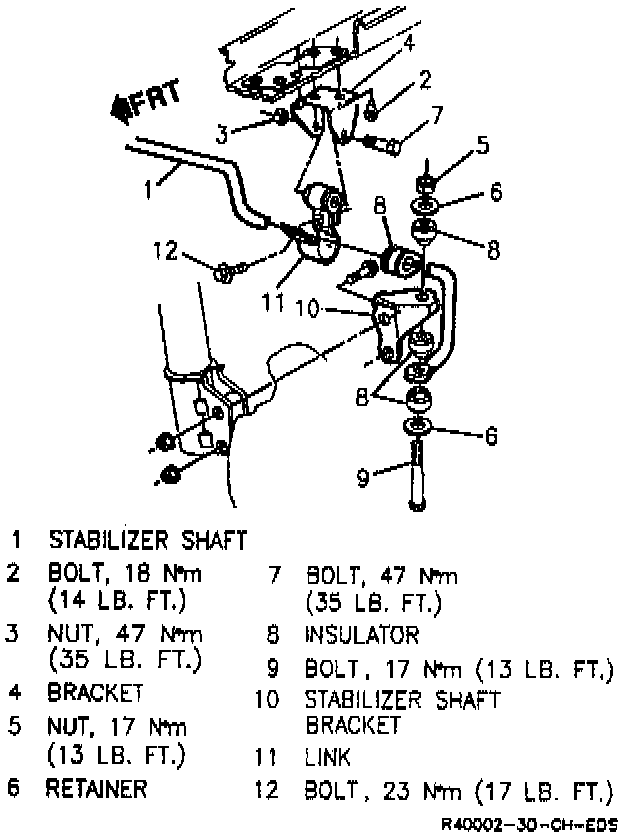

Stabilizer Shaft Mounting Bracket

REMOVE OR DISCONNECT
1. Bolt and nut.
2. Stabilizer shaft mounting bracket bolts and bracket.

INSTALL OR CONNECT
1. Bracket and bolts.
2. Bolt and nut.
^ Tighten:
- Bracket bolts to 18 Nm (14 ft. lbs.).
- Nut to 47 Nm (35 ft. lbs.).
