Fuel Filler Cap: Description and Operation

NOTICE: If a fuel tank filler pipe cap requires replacement, use only a fuel tank filler pipe cap with the same features. Failure to use the correct fuel tank filler pipe cap can result in a serious malfunction of the fuel system.

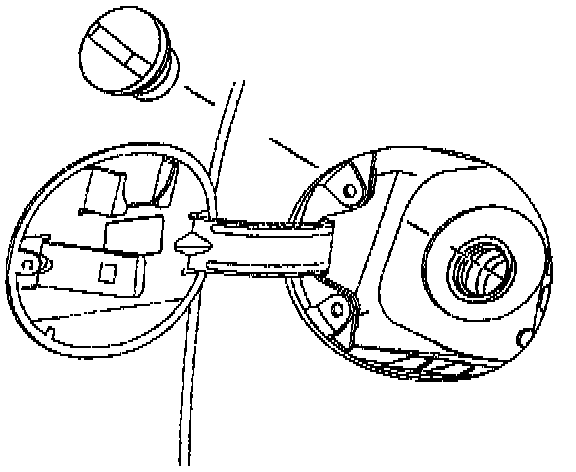

The fuel tank filler pipe is equipped with a threaded-type fuel tank filler pipe cap. The threaded part of the fuel tank filler pipe cap requires several turns counterclockwise before it can be removed. A built-in torque-limiting device prevents over tightening of the fuel tank filler pipe cap. In order to install the fuel tank filler pipe cap, turn the fuel tank filler pipe cap clockwise until at least 3 clicking noises are heard. The clicking noises signal that the correct torque has been reached and that the fuel tank filler pipe cap is fully seated.
