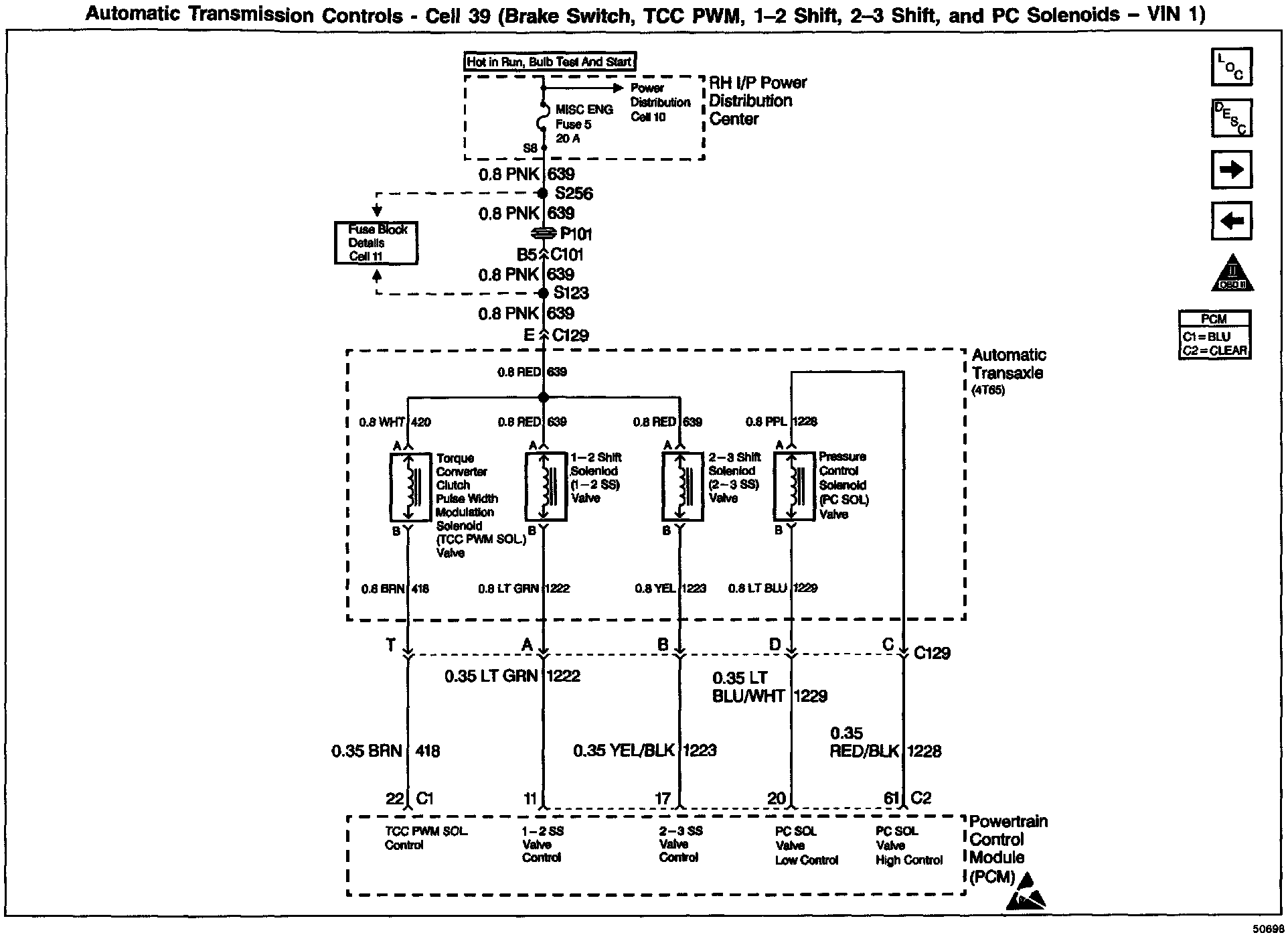

Brake Switch, TCC, 1-2 Shift, 2-3 Shift, & PC Solenoids
Brake Switch, TCC, 1-2 Shift, 2-3 Shift, & PC Solenoids
Wiring Diagram:
