Home
>>
Oldsmobile
>>
1997
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Brake Switch, Solenoids and TFT Sensor
Brake Switch, Solenoids and TFT Sensor

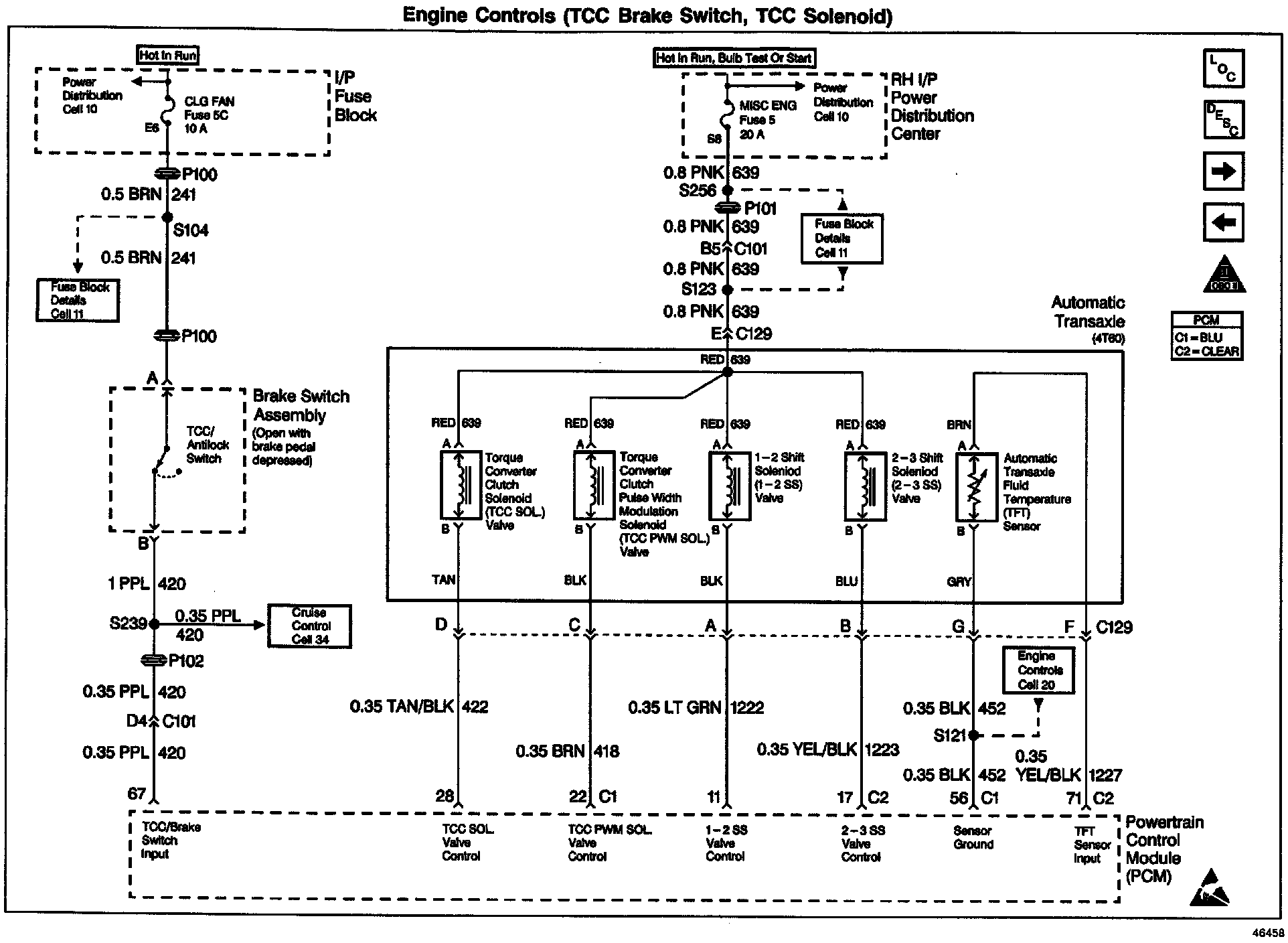

Wiring Diagram:
