Home
>>
Oldsmobile
>>
1997
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
RR Defog/PWR Seat Fuse and IGN SW Fuse
RR Defog/PWR Seat Fuse and IGN SW Fuse

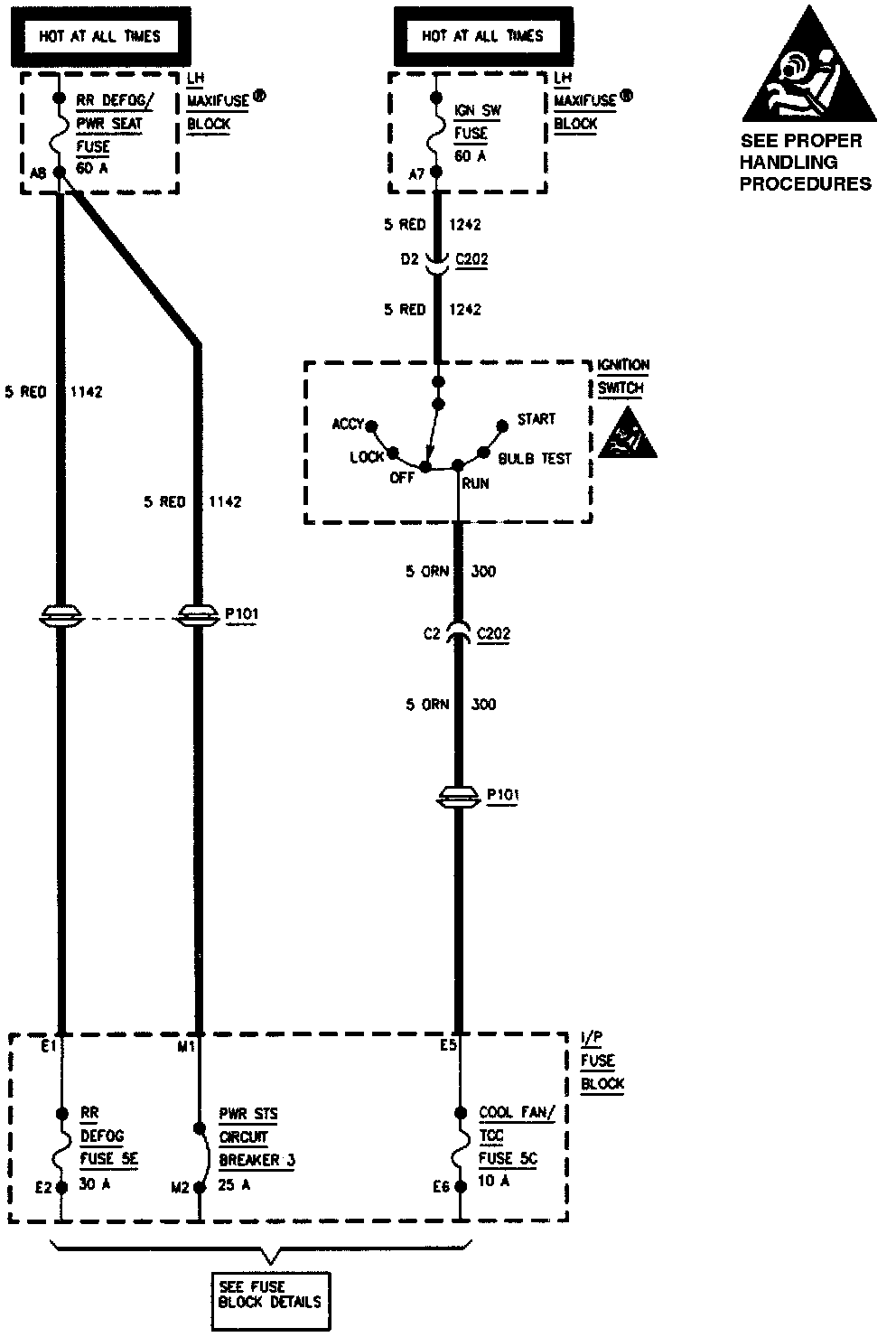

RR DEFOG/PWR Seat Fuse (60 A) And IGN SW Fuse (60 A):
