Misc LGT Fuse, Cool FNS Fuse, C/LTR / RDO Etc.
Misc LGT Fuse, Cool FNS Fuse, C/LTR / RDO Etc.

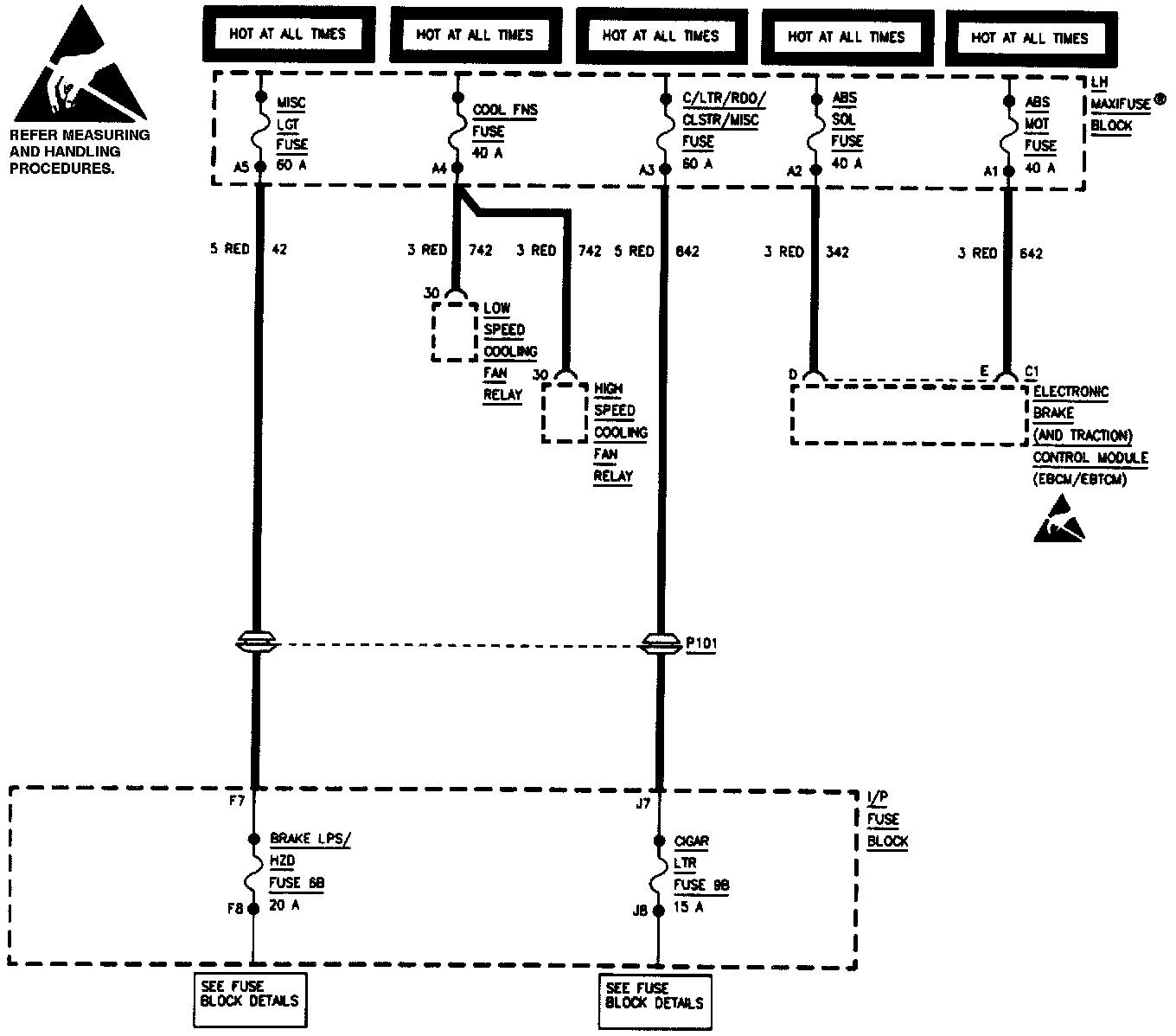

MISC LGT Fuse (60 A), COOL FNS Fuse (40A), C/LTR / RDO / CLSTR / MISC Fuse (60 A), ABS SOL Fuse (40 A) And ABS MOT Fuse (60 A):
