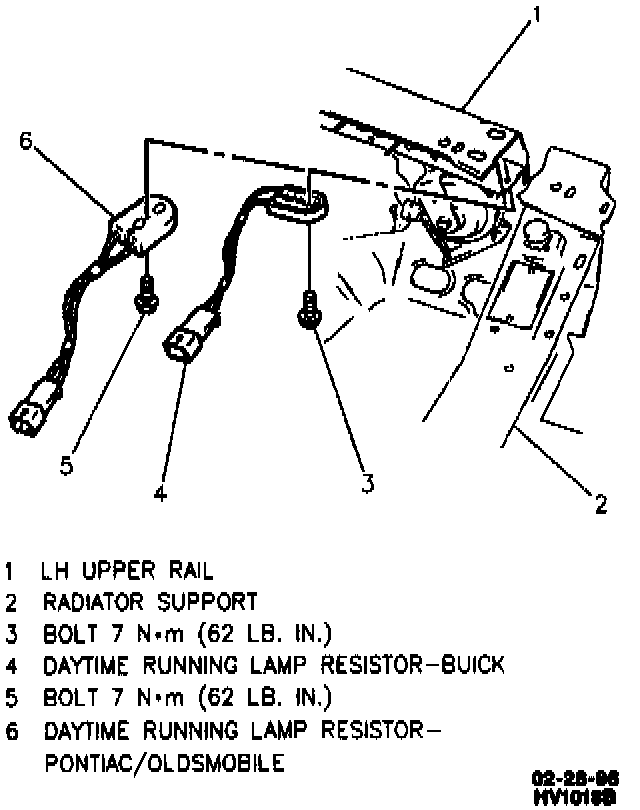

Daytime Running Lamp Resistor: Service and Repair

Remove or Disconnect
1. Resistor screw from front fender.
2. Connector.
3. Daytime running lamp resistor.

Install or Connect
1. Connector to daytime running lamp resistor.
2. Daytime running lamp resistor to front fender.
3. Resistor screw to front fender.

Tighten
^ Screw to 7 N.m (62 lb. in.).
