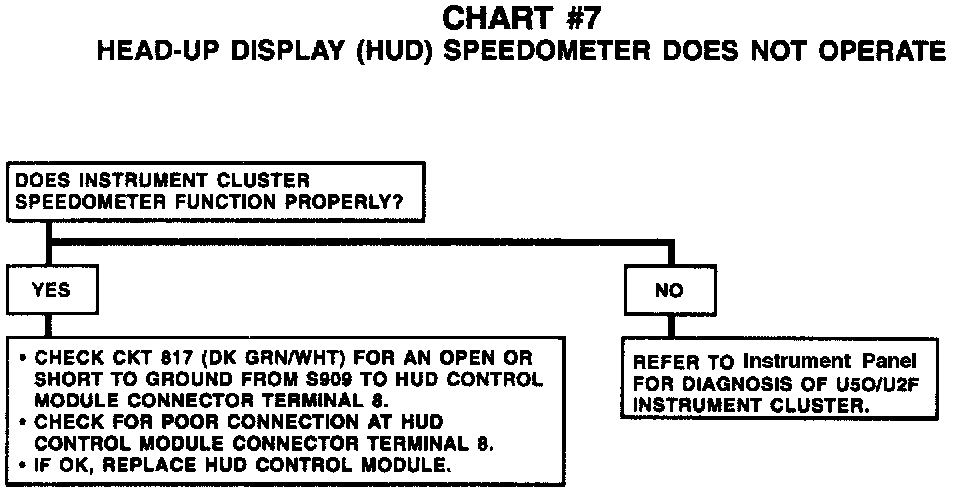

Chart #7 Head-Up Display (Hud) Speedometer Does Not Operate
Chart #7 Head-Up Display (Hud) Speedometer Does Not Operate
Chart #7 Head-Up Display (HUD) Speedometer Does Not Operate:
