Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1997
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Heads Up Display Unit
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Chart #5 Head-Up Display (Hud) Image Intensity Is Not Variable
Chart #5 Head-Up Display (Hud) Image Intensity Is Not Variable

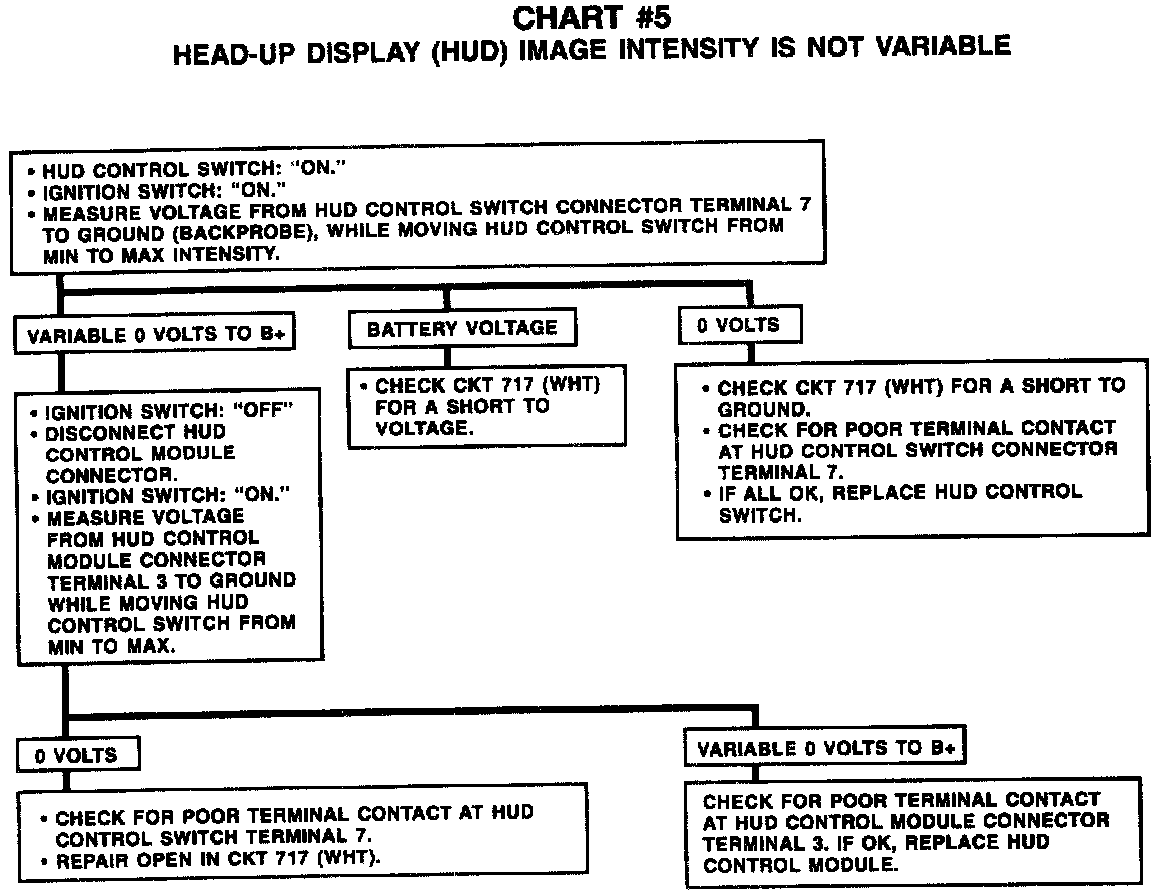

Chart #5 Head-Up Display (HUD) Image Intensity Is Not Variable:
