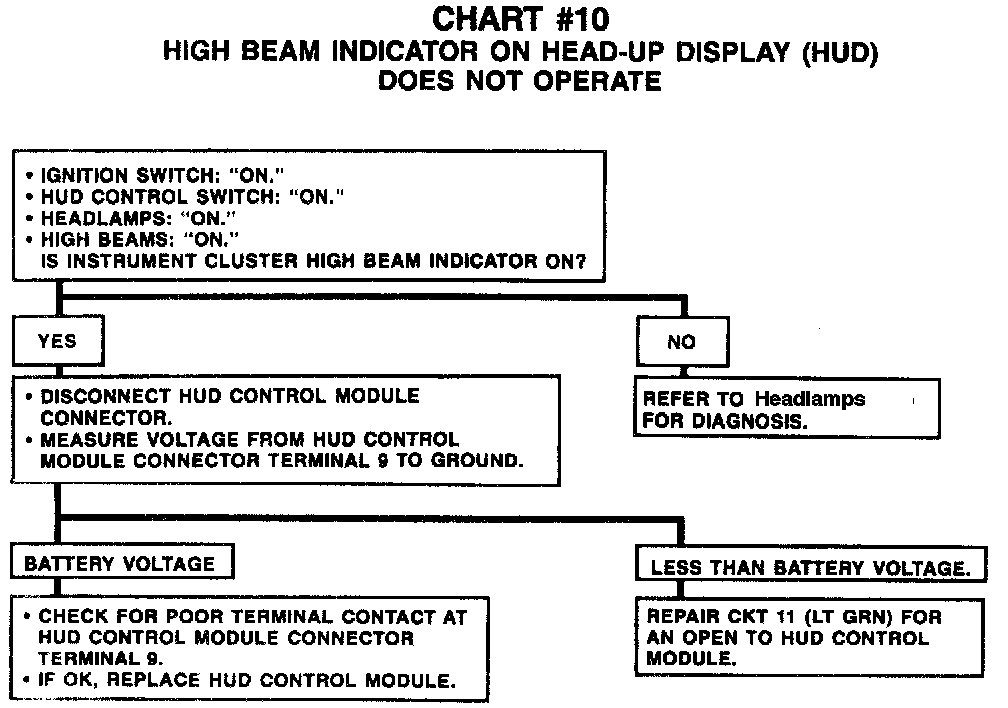

Chart #10 Head Up Display (HUD) High Beam Indicator
Chart #10 Head Up Display (HUD) High Beam Indicator
Chart #10 HIGH Beam Indicator ON Head-Up Display (HUD) Does Not Operate:
