Pinout Description
Pinout Description

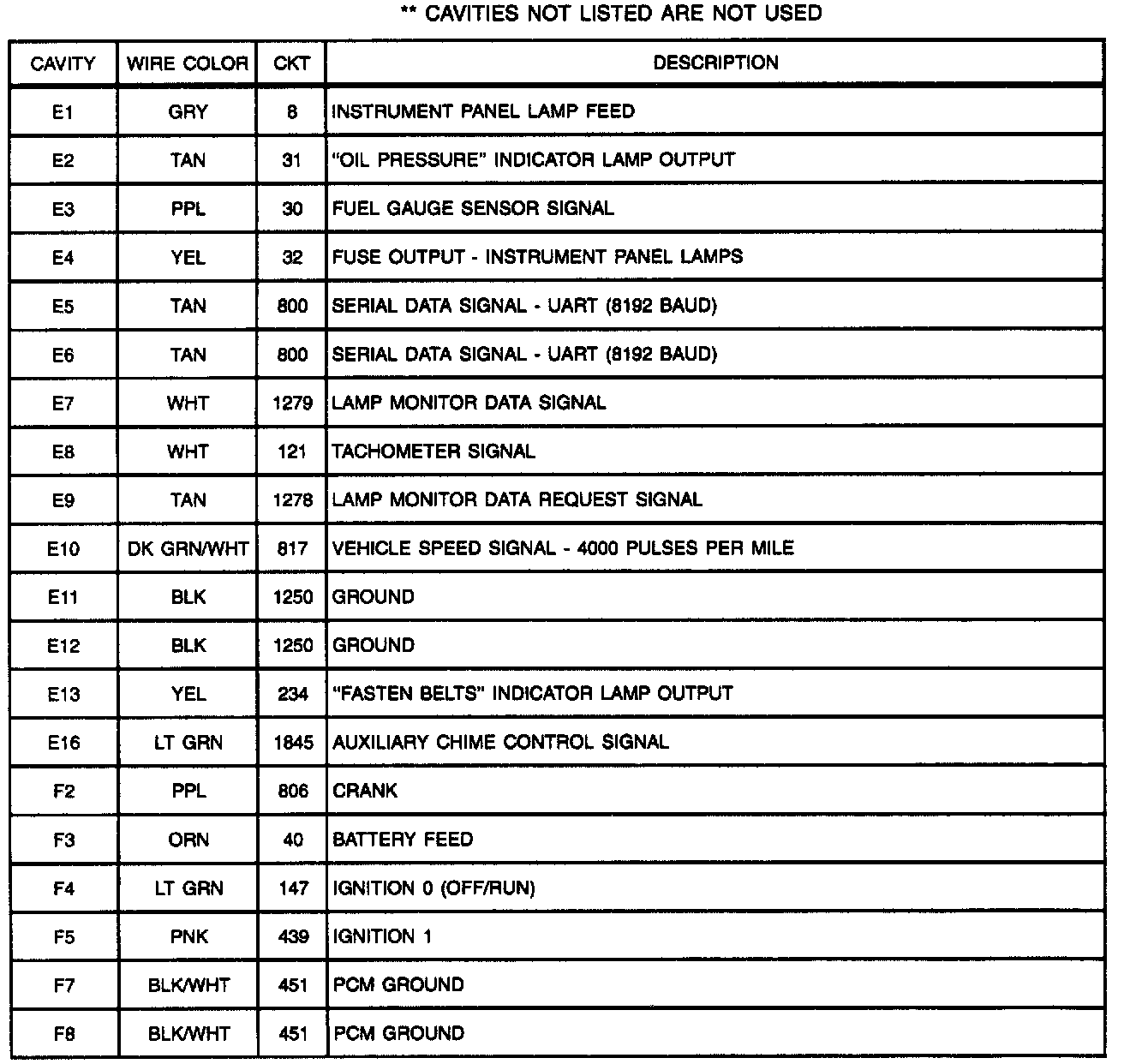

Gauges Cluster: C2 (Part 1 Of 2):

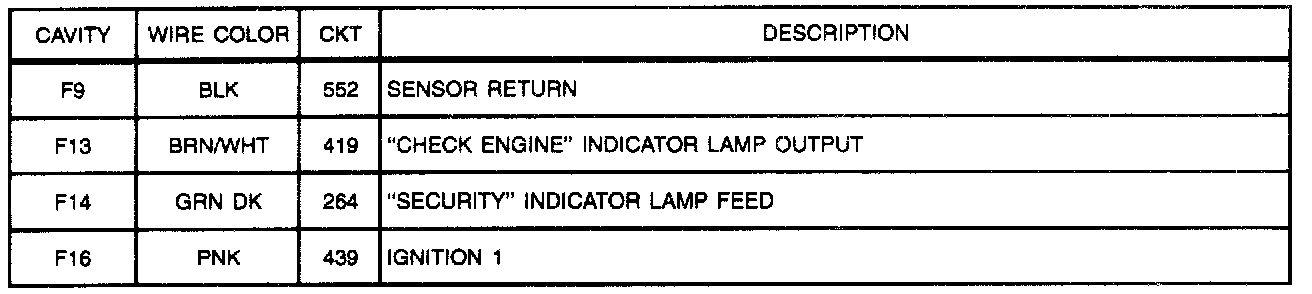

Gauges Cluster: C2 (Part 2 Of 2):
