Instrument Panel, Gauges and Warning Indicators
>>
Compass
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

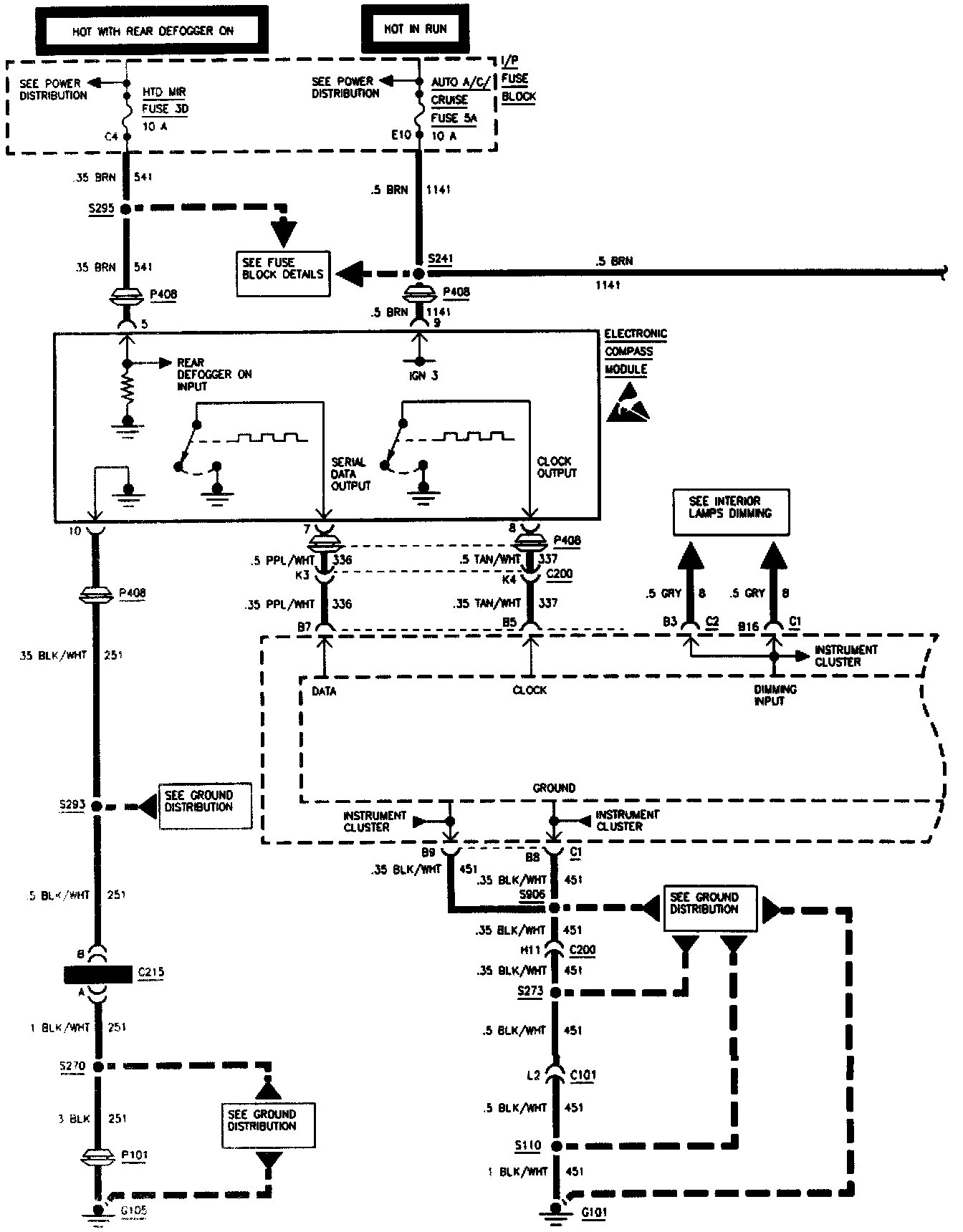

Electronic Compass (Part 1 Of 2):

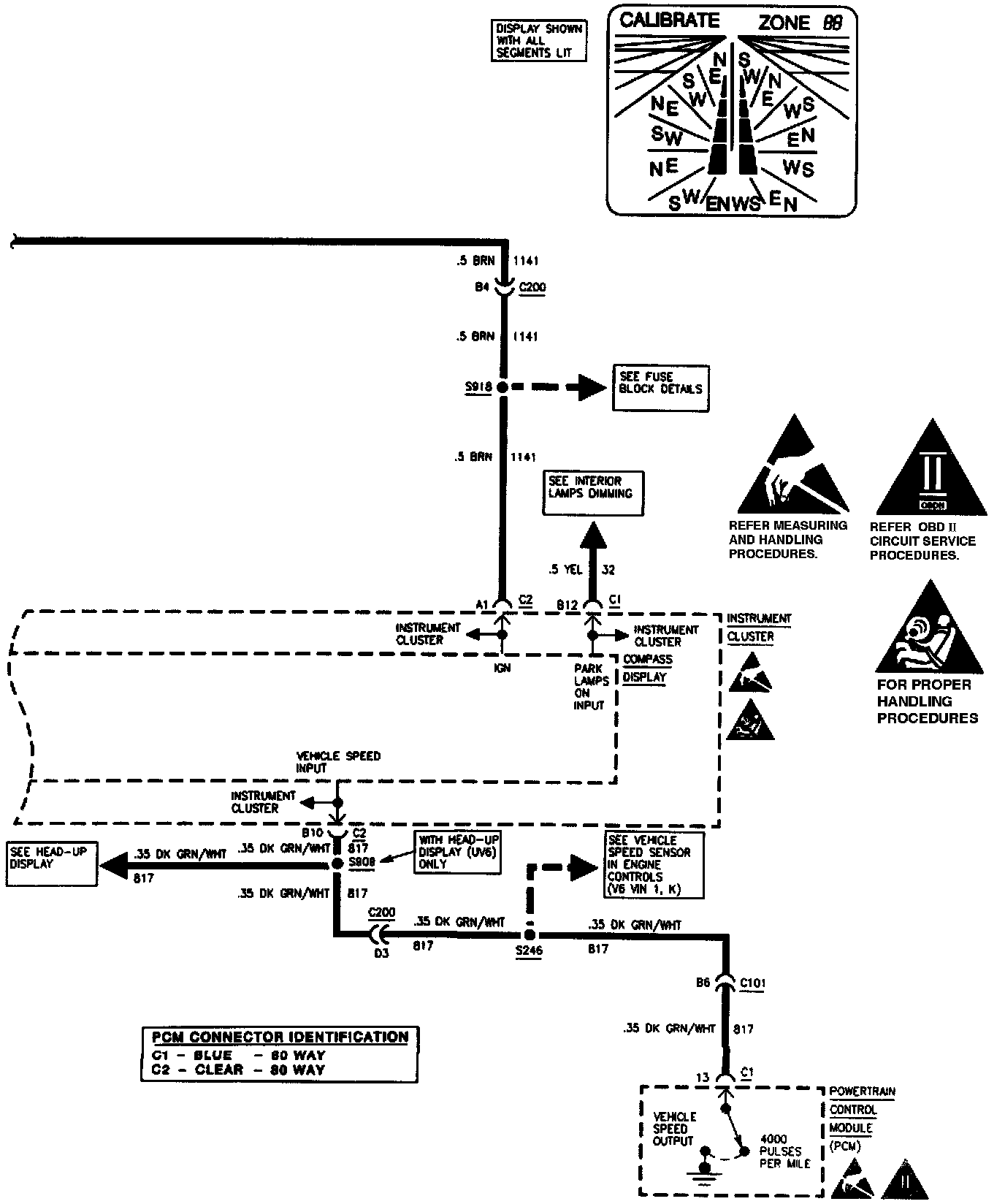

Electronic Compass (Part 2 Of 2):
