Defrost-A/C Valve

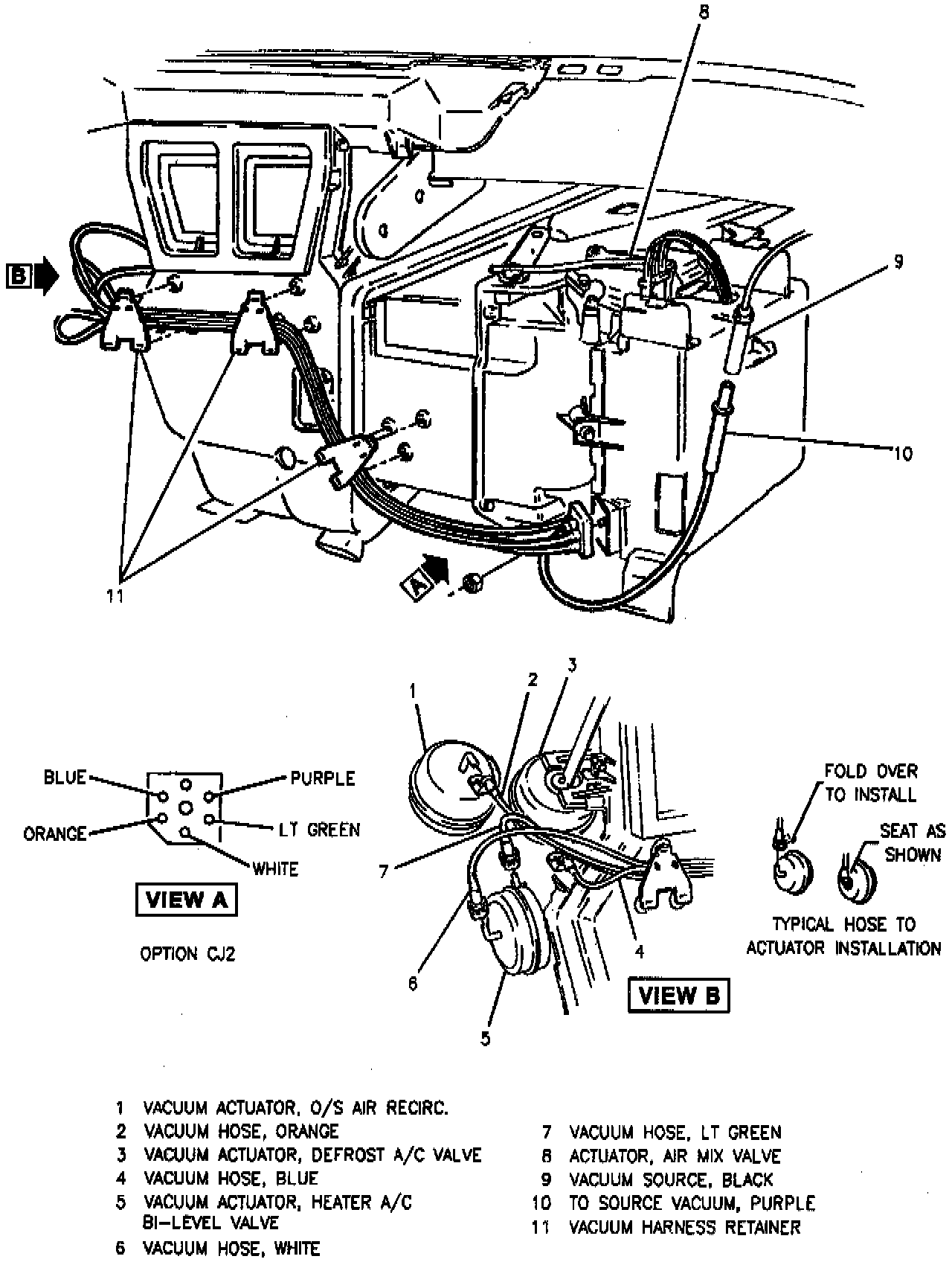

Vacuum Harness - Passenger Compartment:

Remove or Disconnect

1. Air distributor assembly.
2. Vacuum actuator from air distributor assembly by unclipping and disengaging from valve.

Install or Connect

1. Vacuum actuator to air distributor assembly by engaging to valve and clipping into position.
2. Air distributor assembly.
