Heat Shield: Service and Repair

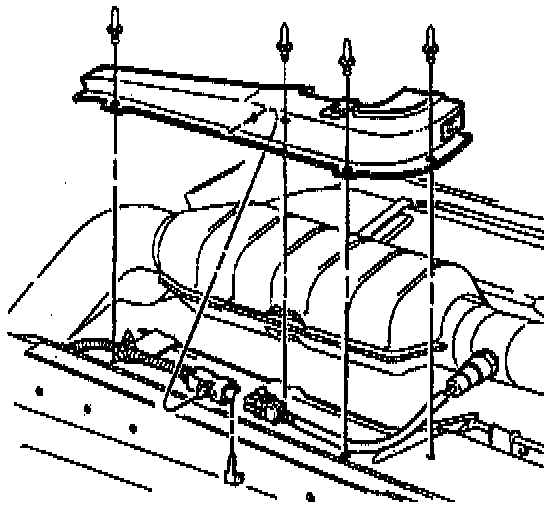

POST CONVERTER OXYGEN SENSOR HEAT SHIELD

TOOL REQUIRED
^ J 29800 Cut-Off Tool

CAUTION: The heated oxygen sensor H02S uses a permanently attached pigtail and connector. This pigtail should not be removed from the H02S. Damage or removal of the pigtail or connector could affect proper operation of the H02S.





REMOVAL
1. Bolts retaining shield to vehicle.
2. Oxygen sensor connector from shield.

INSTALLATION
1. Oxygen sensor connector to shield.
2. Bolts retaining shield to vehicle.
