Harmonic Balancer - Crankshaft Pulley: Service and Repair

TOOL REQUIRED
^ J 37096 Flywheel Holding Tool
^ J 38197 Crankshaft Balancer Puller
^ J 36660 Torque Angle Meter

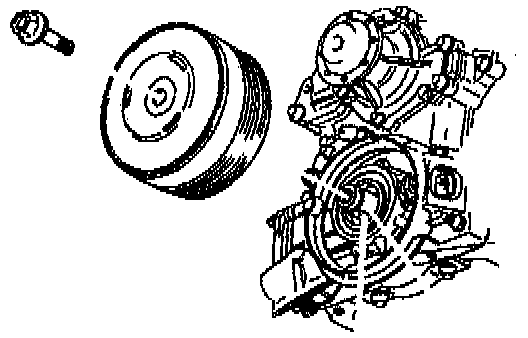

REMOVAL
1. Hold the flywheel. Use the Flywheel Holding Tool.





2. Remove the balancer bolt.

CAUTION: Do not attempt to separate the pulley from the balancer hub. The balancer is serviced as an assembly.

3. Use the Crankshaft Balancer Puller in order to remove the crankshaft balancer. Use 1/4 inch bolts to attach to the pulley. Screw them in 1/4 inch.

INSTALLATION
1. Lubricate the seal surface with engine oil.
2. Install the crankshaft balancer.

CAUTION: This bolt is designed to permanently stretch when tightened. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.

3. Install the balancer bolt. Hold the flywheel with the Flywheel Holding Tool. Tighten the bolt to 150 Nm (111 ft. lbs.). Use the Torque Angle Meter in order to rotate the bolt an additional 76 degrees.
