Home >> Oldsmobile >> 1997 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seats >> Left Front

Left Front

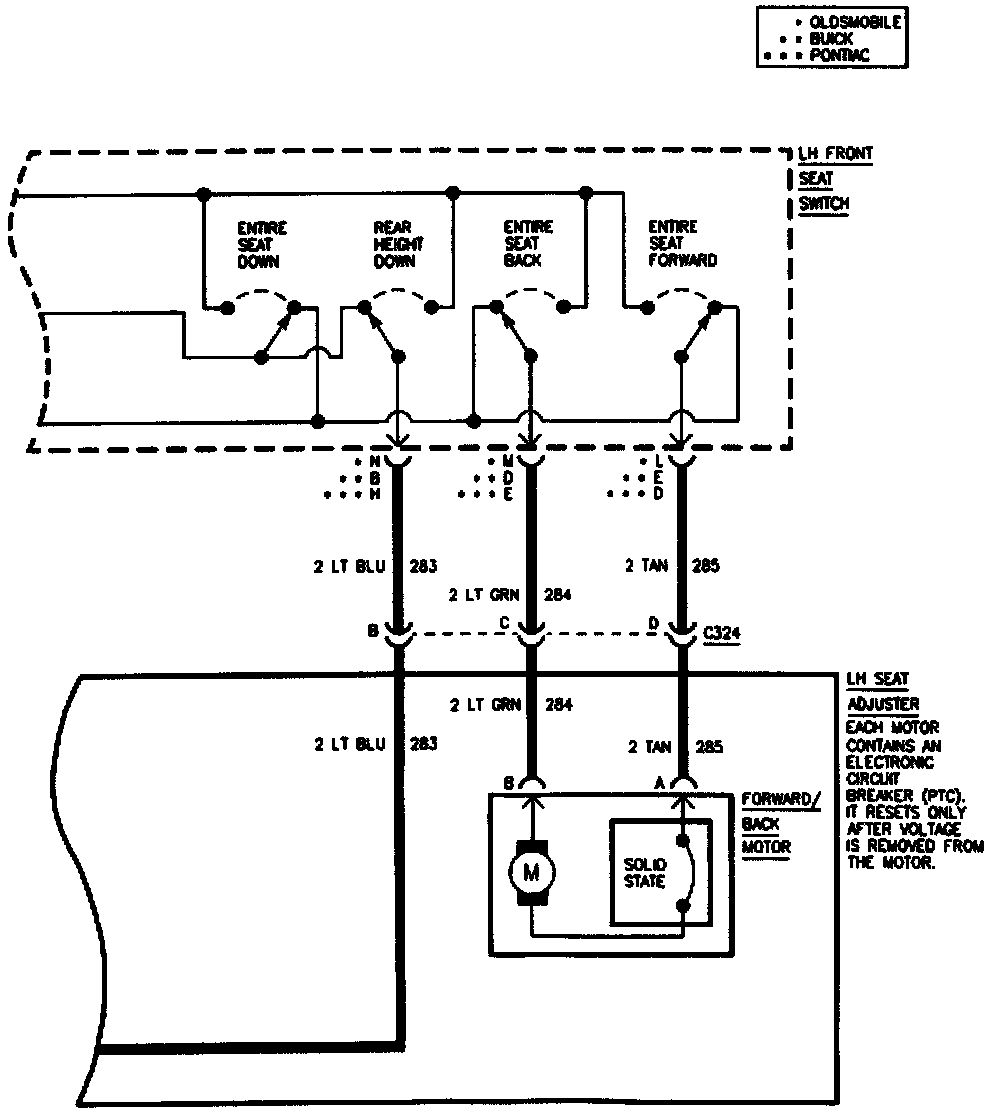

Power Seats: Left Front (Part 1 Of 2):

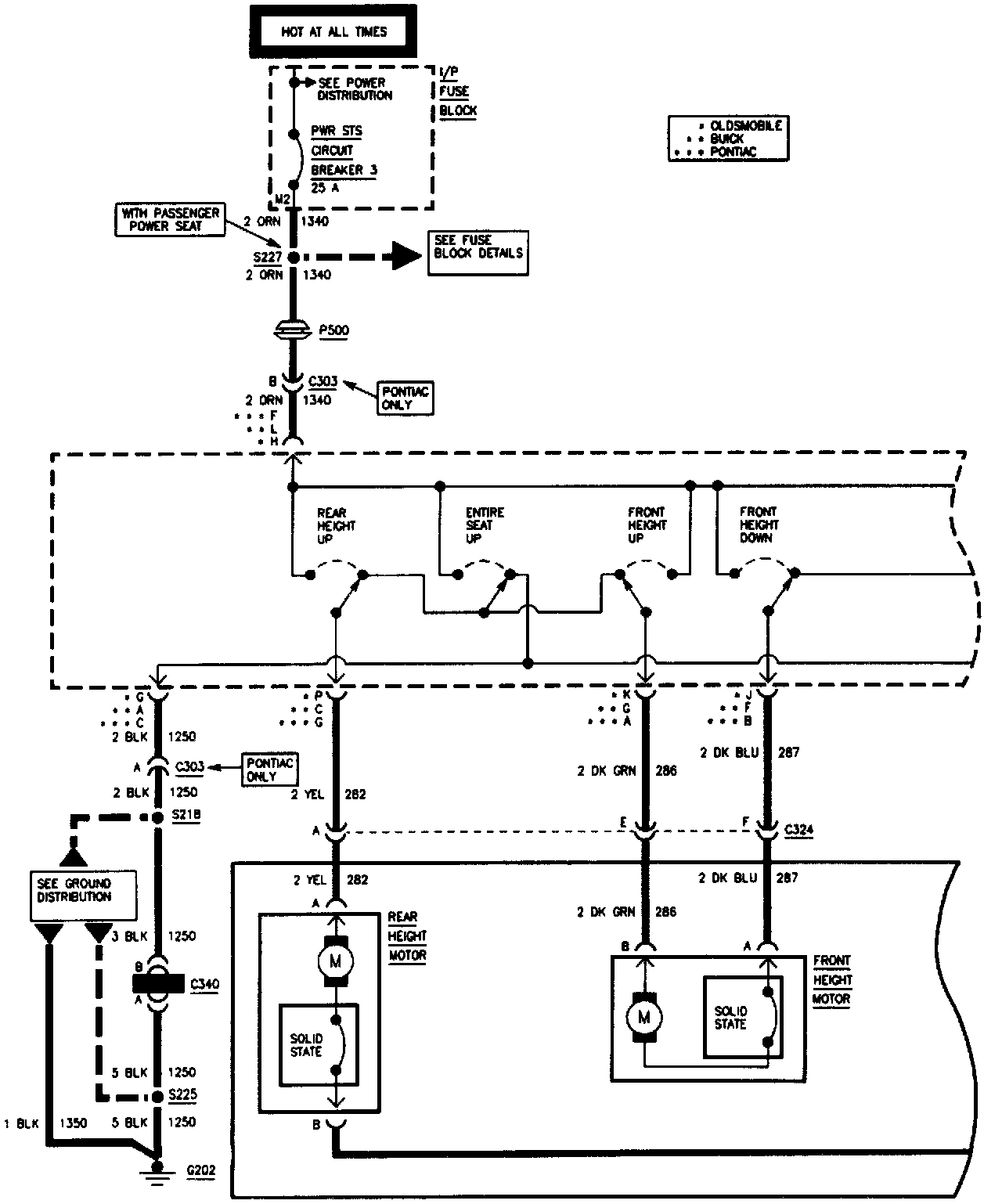

Power Seats: Left Front (Part 2 Of 2):
