Power Mirror Memory

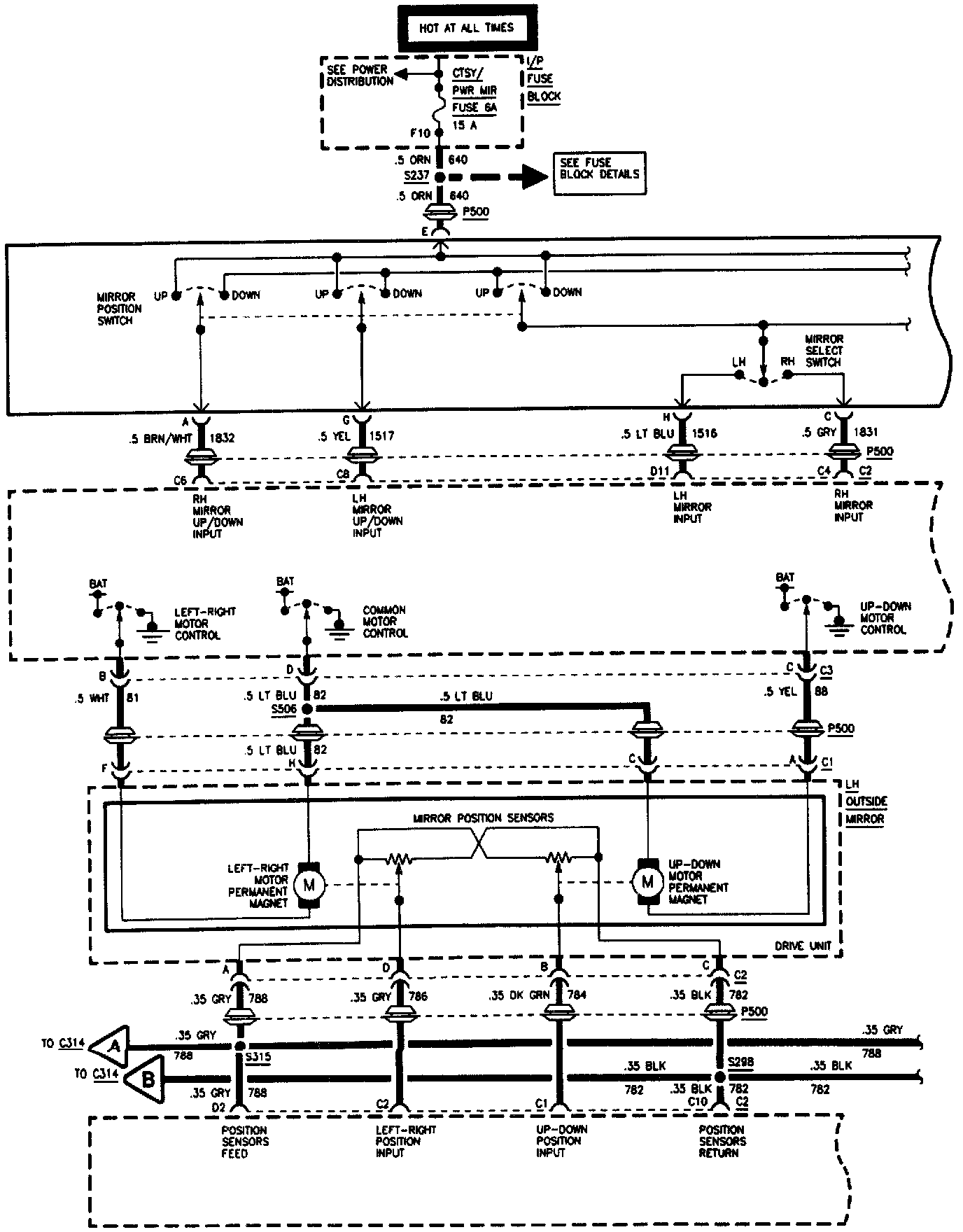

Power Seats/Mirrors: Memory (Part 1 Of 5):

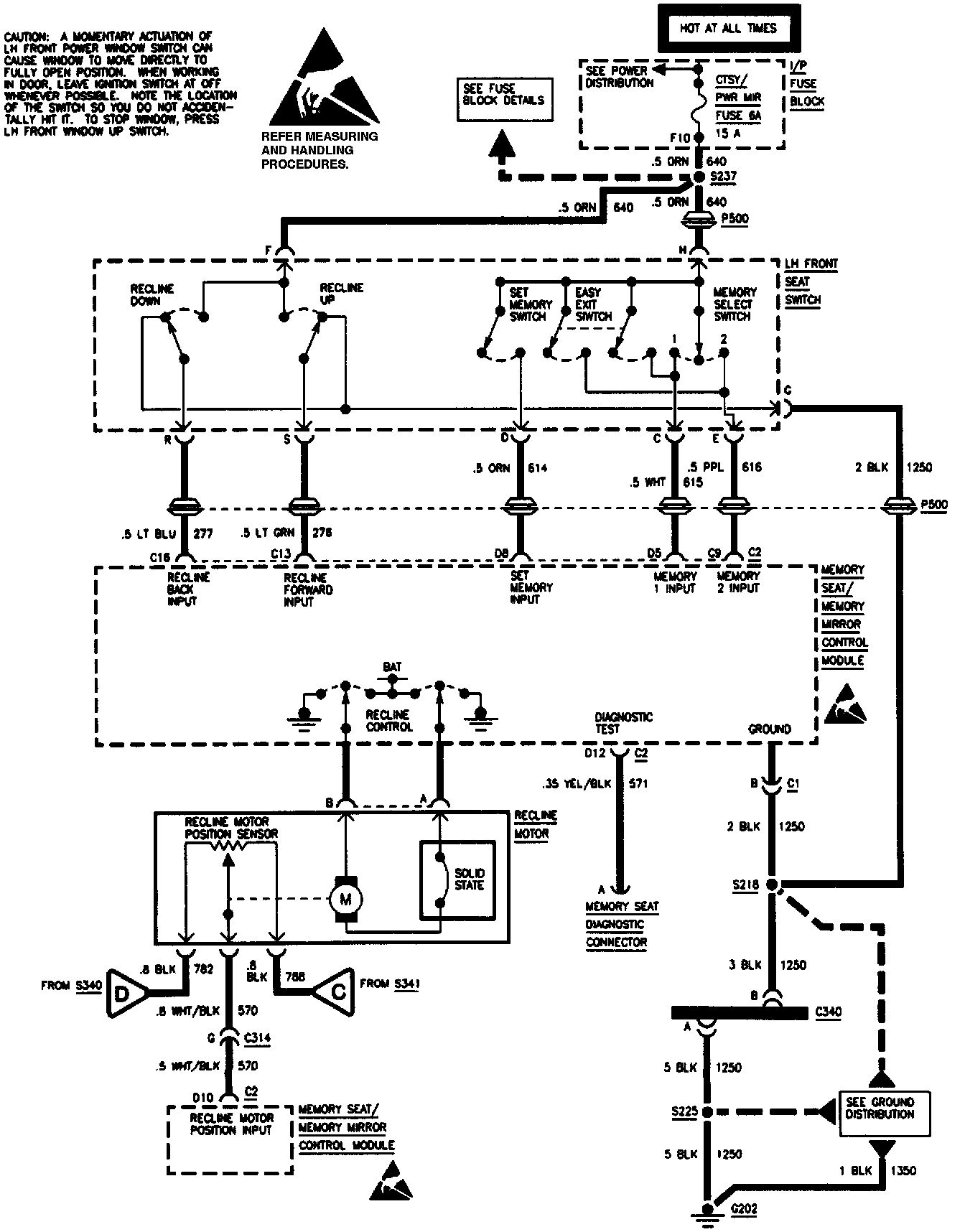

Power Seats/Mirrors: Memory (Part 2 Of 5):

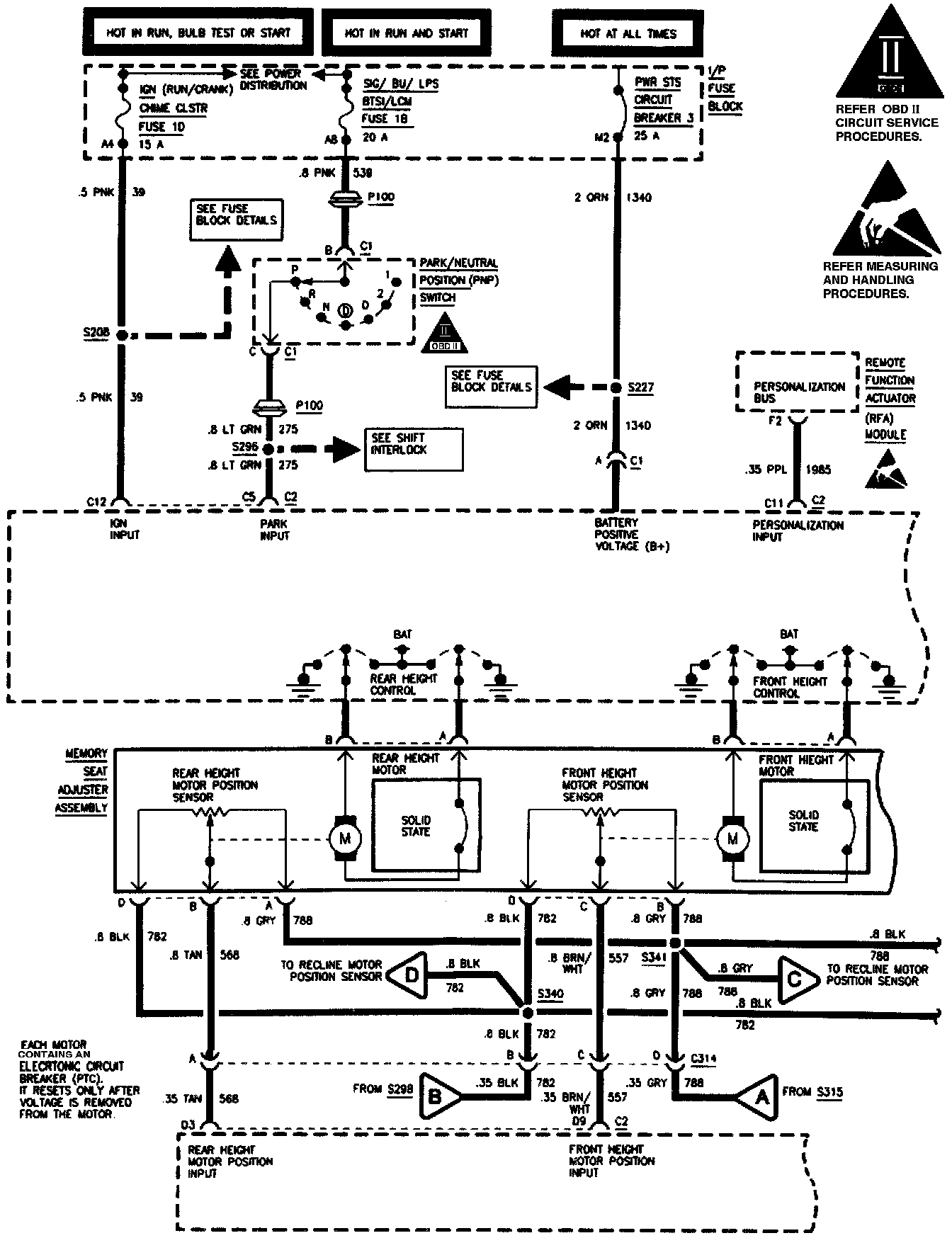

Power Seats/Mirrors: Memory (Part 3 Of 5):

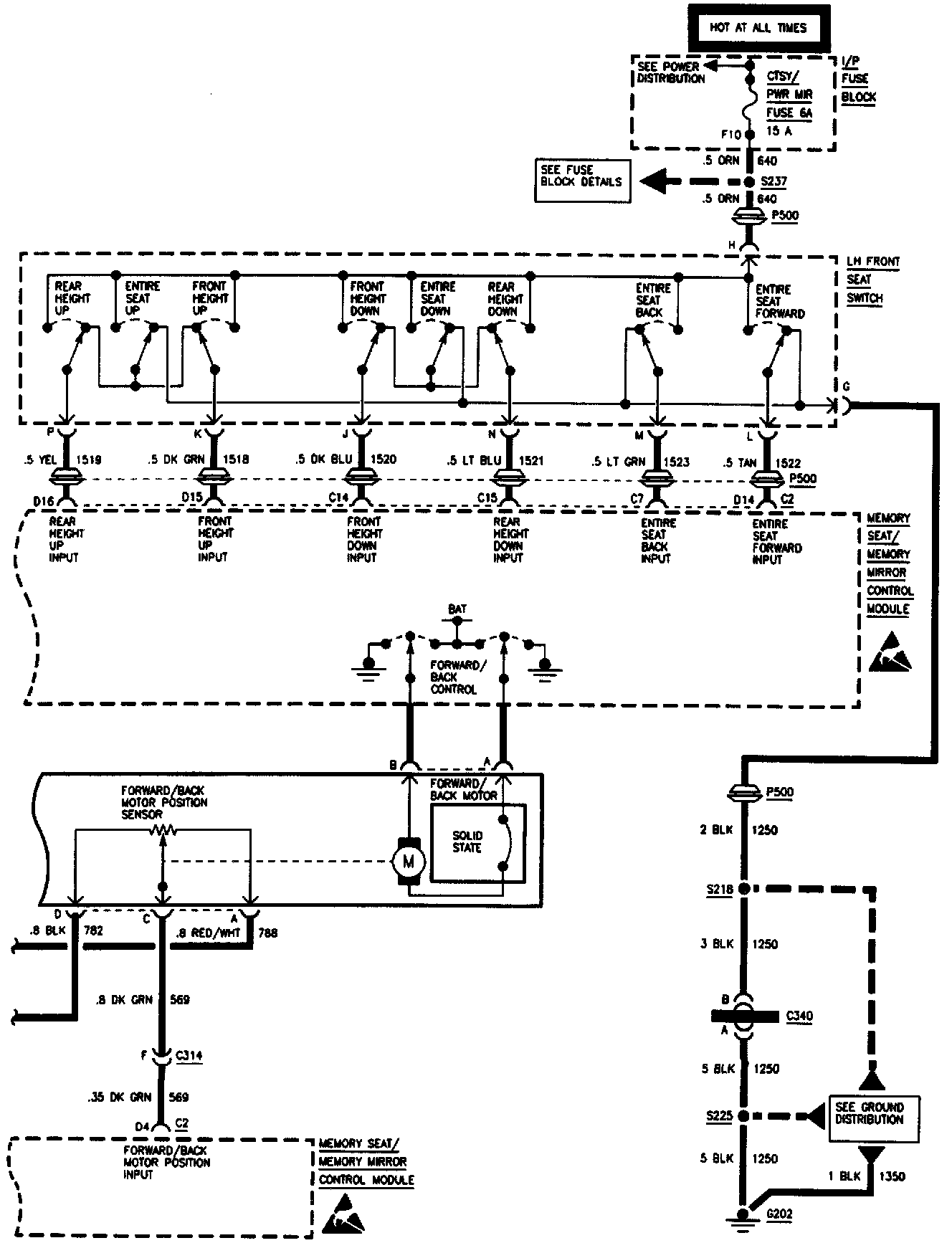

Power Seats/Mirrors: Memory (Part 4 Of 5):




Power Seats/Mirrors: Memory (Part 5 Of 5):
