Intermediate

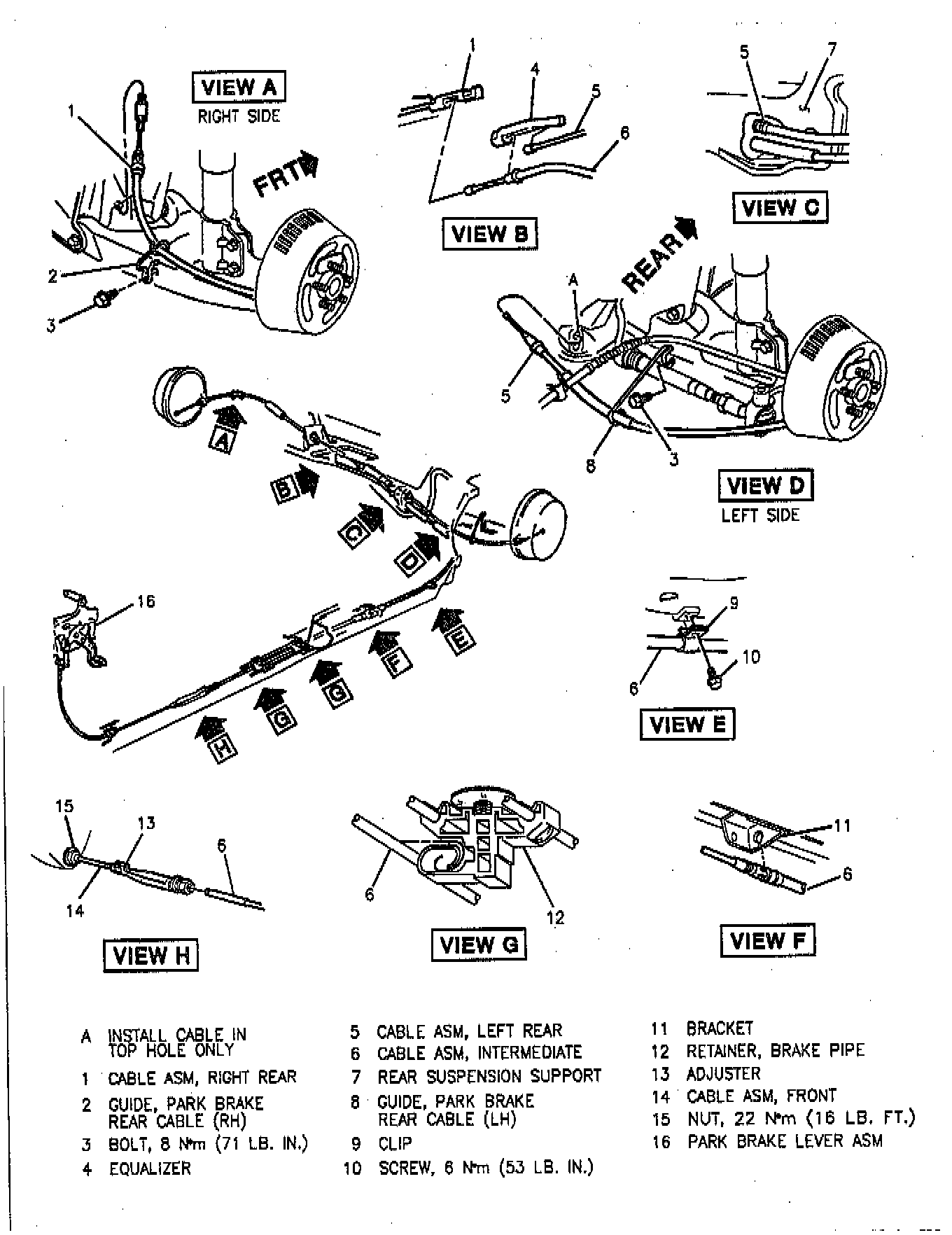

Parking Brake Cable Routing And Components:

REMOVE OR DISCONNECT
1. Raise vehicle and suitably support.
2. Intermediate cable from adjuster.
3. Clip from brake pipe retainer and cable.
4. Cable from rear equalizer.
5. Cable from bracket and brake pipe retainers.

INSTALL OR CONNECT
1. Route and install cable into brake pipe retainers, and snap cable into bracket.
2. Cable through top support hole in underbody.
3. Left and right rear cables to intermediate cable, using equalizer.
4. Clip, around cable then to brake pipe retainer. Tighten Torque bolt to 6.0 Nm (53 inch lbs.).
5. Cable to adjuster. Adjust Parking brake cable.
