Table E Traction Active Indicator on With No DTC(S) Set

"Traction Active" Indicator "On" With No DTC(s) Set:

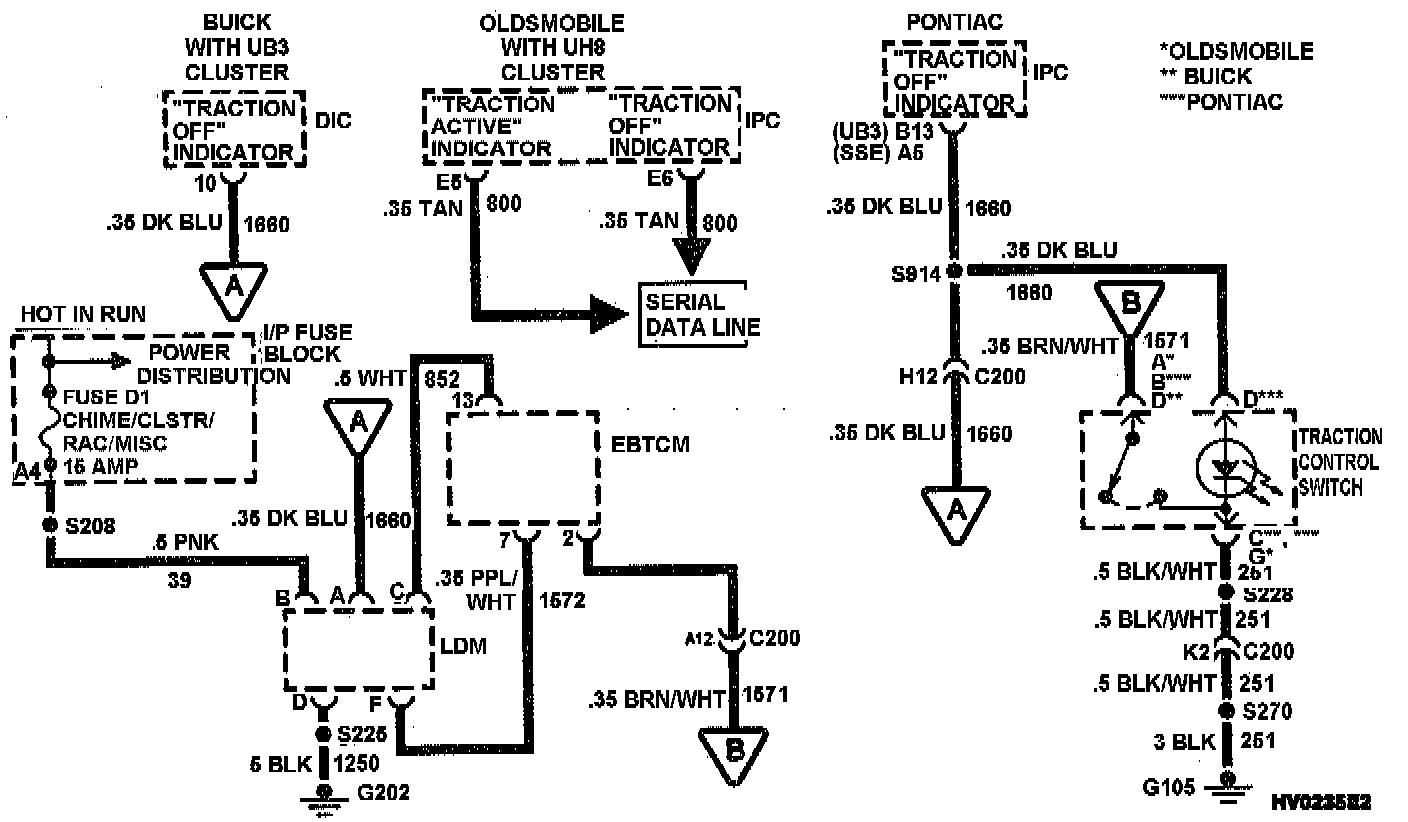

"Traction Active" Indicator Schematic:

CIRCUIT DESCRIPTION
The "TRACTION ACTIVE" indicator is used only on Oldsmobile. The "TRACTION ACTIVE" indicator is controlled by serial data over the UART lines from the EBTCM.

DIAGNOSTIC AIDS
- It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.

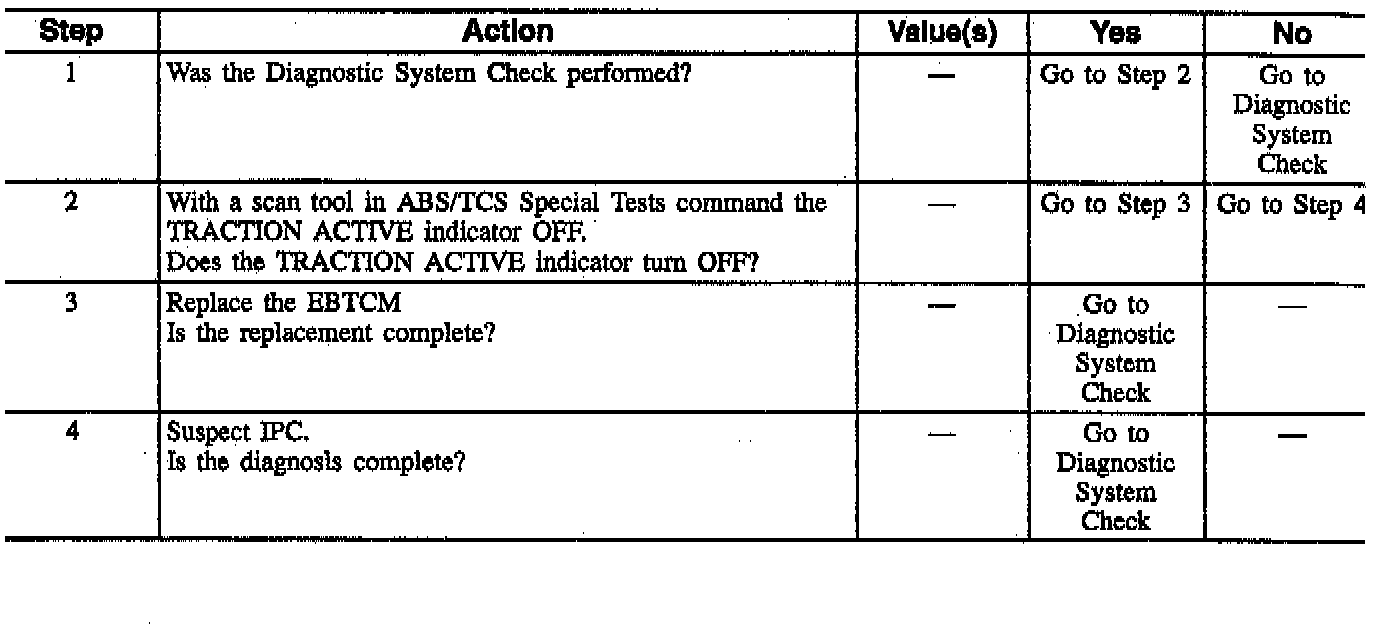

TABLE TEST DESCRIPTION
The number below refer to step numbers on the diagnostic table.
2. Checks if the IPC has the ability to turn the indicator "OFF."
