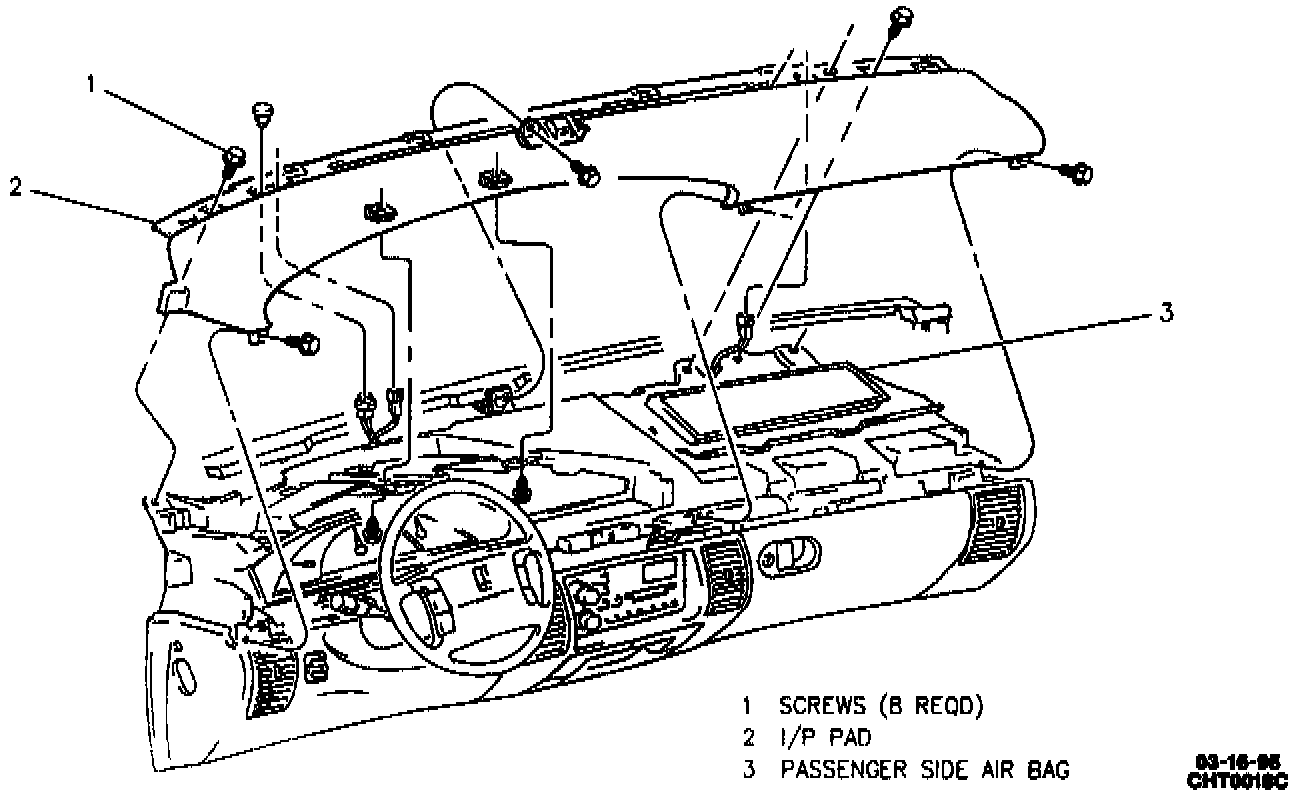

Upper Trim Pad

Description:

Remove or Disconnect
1. I/P molding by carefully pulling rearward.
^ Carefully pry windshield defroster grill upwards.
2. Sunload and twilight sentinel sensors if equipped).
^ Turn sensor(s) 1/4 turn to release.
3. Windshield defroster grill.
4. Cluster trim plate.
5. Upper trim pad fasteners.
6. Upper trim pad.

Install or Connect
1. Upper trim pad.
2. Upper trim pad fasteners.
^ Place windshield defroster grill at base of windshield.
3. Sunload and twilight sentinel sensors, turn 1/4 turn to secure.
4. Windshield defroster grill by carefully pressing into place.
5. Cluster trim plate.
6. I/P molding by carefully pushing forward to secure clips.
