Wiper Motor Cover Replacement

Description:

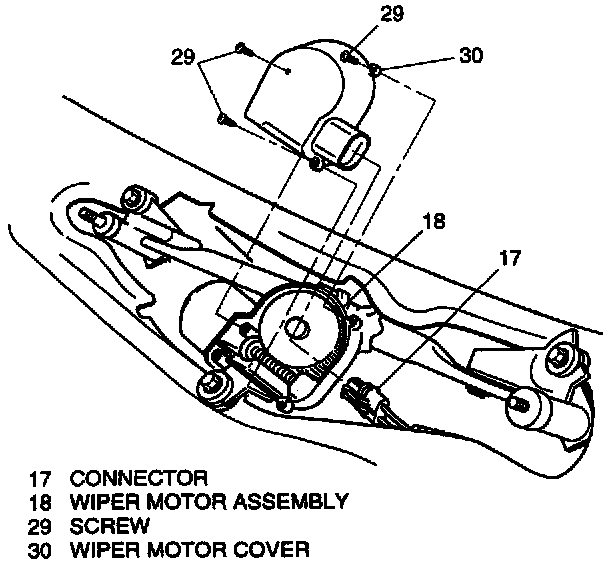

Remove or Disconnect
1. Air inlet screen from vehicle.
2. Connector (17) from wiper motor assembly (18).
3. Three screws (29) and wiper motor cover (30) from wiper motor assembly (18).

Install or Connect

NOTICE: See fastener "Notice" 8E-1.

1. Wiper motor cover (30) on wiper motor assembly (18) with three screws (29).
2. Connector (17) to wiper motor assembly (18).
3. Air inlet screen on vehicle.
4. Operate wipers and check for proper operation.
