Wiper Motor Linkage: Service and Repair

Description:

Remove or Disconnect
1. Wiper arm assemblies from wiper transmission assembly drive shafts.
2. Air inlet screen from vehicle.
3. Connector (17) from wiper motor assembly (18).

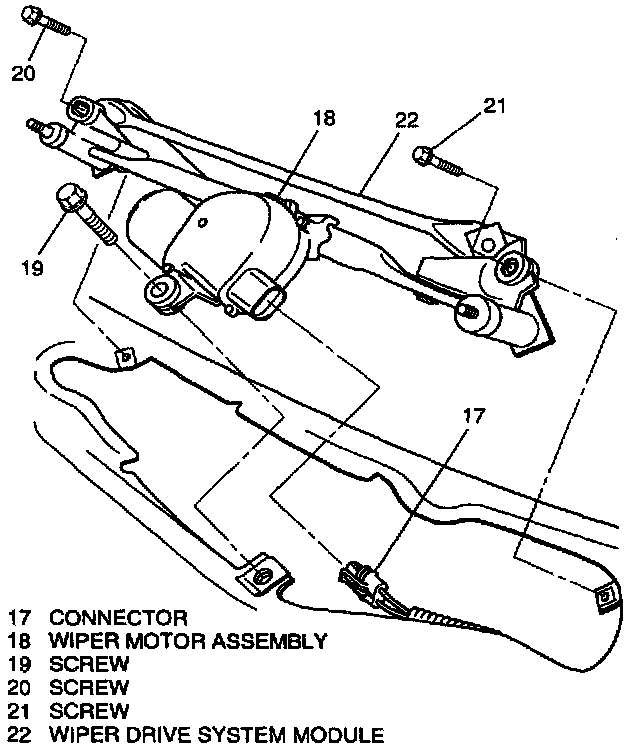

4. Three screws (19, 20, and 21) and wiper drive system module (22) from vehicle.
5. Wiper motor assembly from wiper transmission assembly.
6. Two caps (23) from wiper transmission assembly (24).

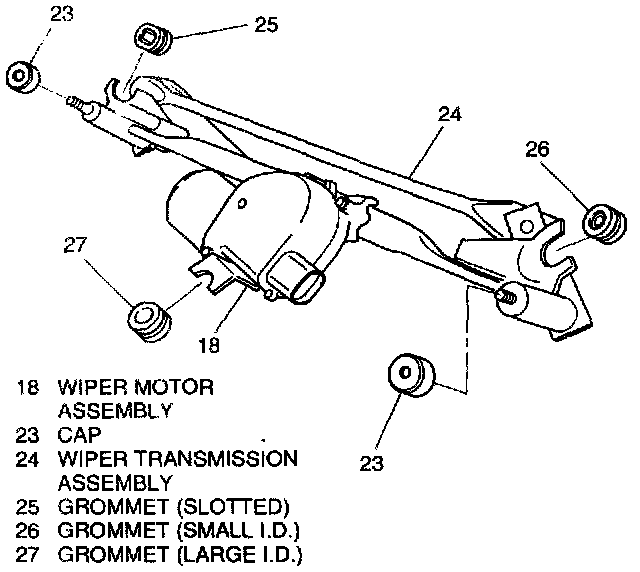

7. Three grommets (25, 26, and 27) from wiper motor assembly (18) and wiper transmission assembly (24).

Install or Connect

NOTICE: Refer to Service Precautions.

NOTICE: Grommets must be installed with metal side down.

1. Grommet (27) (large I.D.) on wiper motor assembly (18).
2. Two grommets (26 and 25) on wiper transmission assembly (24).
3. Two caps (23) on wiper transmission assembly (24).
4. Wiper motor assembly on wiper transmission assembly.
5. Wiper drive system module (22) on vehicle with three screws (21, 20, and 19).
^ Install screws in the following order: 21, 20, and 19.

Tighten
^ Screws to 10 N.m (88 lb. in.) in the following order: 21, 20, and 19.
6. Connector (17) on wiper motor assembly (18).
7. Air inlet screen on vehicle.
8. Wiper arm assemblies on wiper transmission assembly drive shafts.
9. Operate wipers and check for proper operation.
