Windshield Washer Reservoir: Service and Repair

Description:

Remove or Disconnect
1. Raise vehicle.
2. Left splash shield from vehicle.
3. Air intake duct from vehicle.

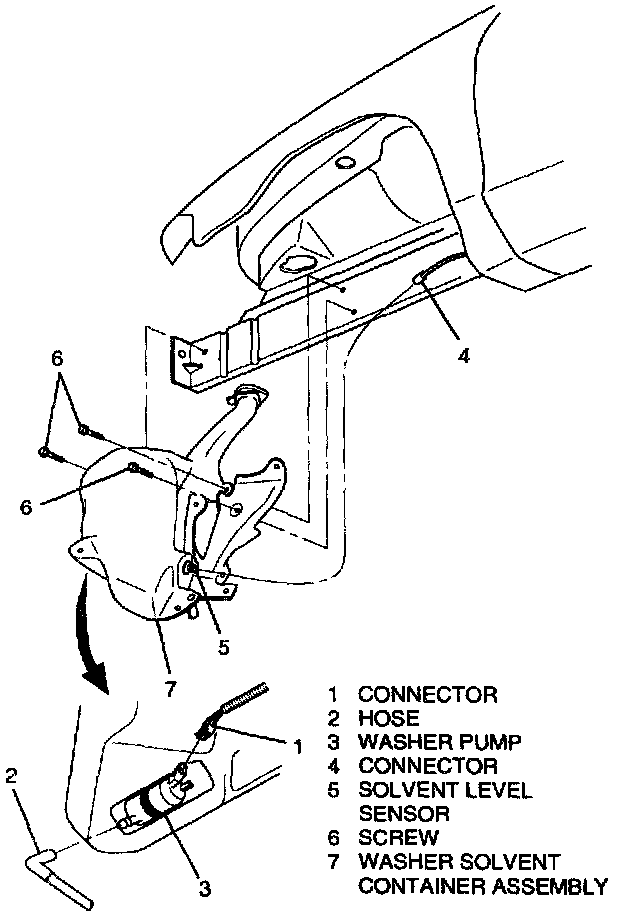

4. Connector (1) and hose (2) from washer pump (3).
5. Connector (4) from solvent level sensor (5).
6. EBCM from vehicle.
7. Three screws (6) and washer solvent container assembly (7) from vehicle.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Washer solvent container assembly (7) on vehicle with three screws (6).

Tighten
^ Screws to 6 N.m (53 lb. in.).

2. EBCM to vehicle.
3. Hose (2) and connector (1) to washer pump (3).
4. Connector (4) to solvent level sensor (5).
5. Air intake duct to vehicle.
6. Left splash shield to vehicle.
7. Lower vehicle.
