Windshield Washer Pump: Service and Repair

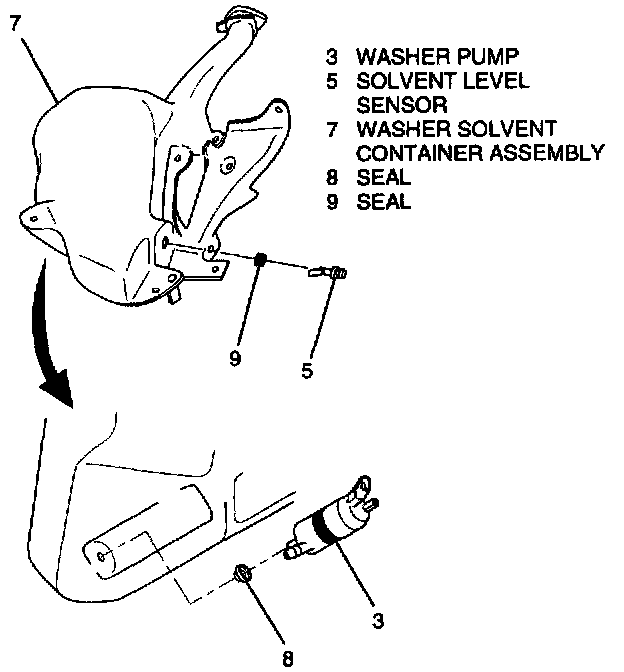

Description:

Remove or Disconnect
1. Washer solvent container assembly from vehicle.
2. Drain solvent from washer solvent container assembly (7).
3. Washer pump (3) from washer solvent container assembly (7).
A. Pull top of washer pump (3) out from side of washer solvent container assembly (7).
B. Pull washer pump (3) up out of washer solvent container assembly (7).
4. Seal (8) from washer solvent container assembly (7).

Install or Connect

IMPORTANT
^ Lubricate seal with windshield washer solvent to ease installation.

1. Seal (8) in washer solvent container assembly (7).
2. Washer pump (3) in washer solvent container assembly (7).
A. Push washer pump (3) down into washer solvent container assembly (7) completely.
B. Push top of washerpump (3) into side of washer solvent container assembly (7).
3. Washer solvent container assembly on vehicle.
4. Fill washer solvent container assembly (7) with solvent.
