Shift Cable: Service and Repair

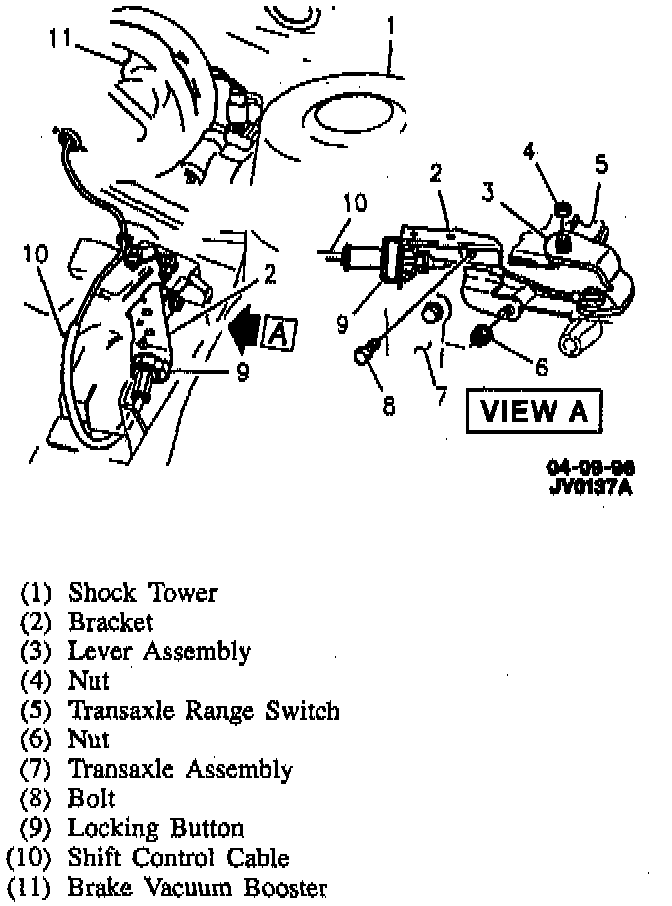

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Cable at transaxle selector lever.
3. Cable at transaxle cable bracket.
4. Center console. Refer to Instrument Panel, Gauges and Warning Indicators.
5. Cable at shin control assembly.
6. Cable grommet at cowl.
7. Cable from vehicle.

INSTALL OR CONNECT
1. Cable through cowl and carpet.
2. Cable grommet and bolts in cowl.

Tighten
- Grommet bolts to 2 Nm (17 lb in).

3. Cable at shift control assembly.
4. Center control. Refer to Instrument Panel, Gauges and Warning Indicators.

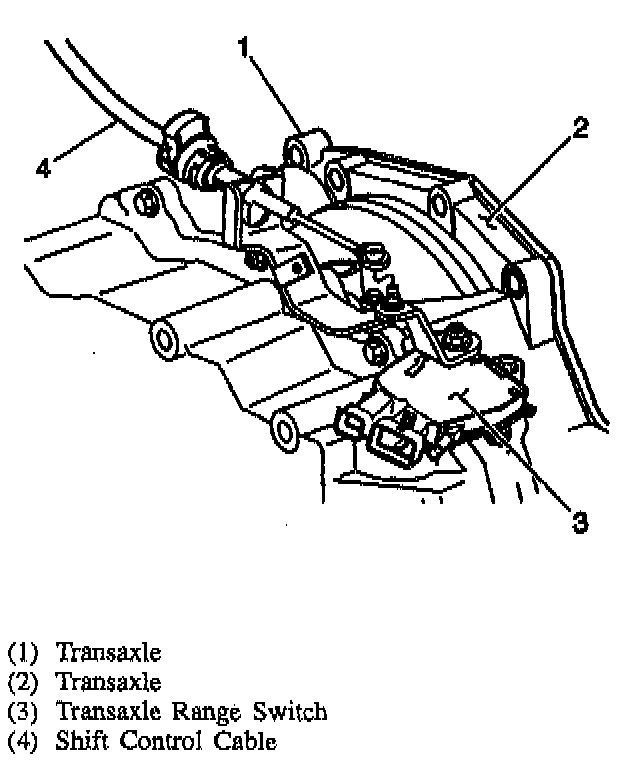

5. Cable at transaxle cable brackets.
6. Cable at transaxle selector lever.
7. Negative battery cable.
8. Adjust cable.

ADJUST
1. Place shift lever in NEUTRAL.
- NEUTRAL can be found by rotating the selector shaft clockwise from PARK through REVERSE to NEUTRAL.
2. Place shift control assembly in NEUTRAL.
3. Pull cable locking clip fully upward.
4. Push tab on cable adjuster to adjust cable in cable mounting bracket.
