Transaxle Oil Cooler Line Seals

^ Tools Required:
- J 41239-1 Cooler Pipe Seal Installer
- J 41239-2 Cooler Pipe Seal Remover
- J 6125B Slide Hammer
- J 6471 Slide Hammer Adapter

REMOVE OR DISCONNECT
1. Raise vehicle and support the vehicle.

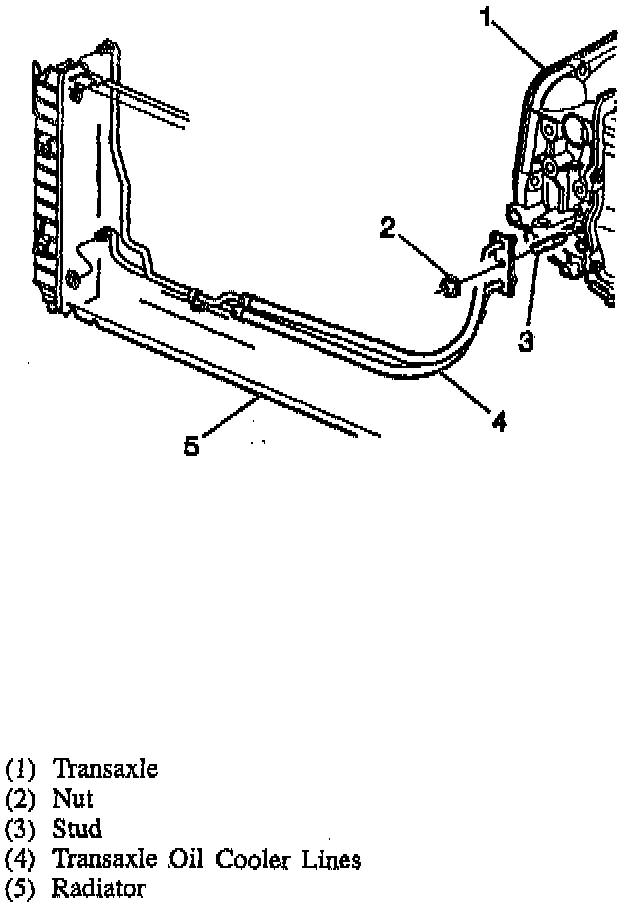

2. Transaxle oil cooler lines from transaxle, (1 bolt).
3. Seal removal tool J 41239-2 into cooler line seal.
4. Slide Hammer J 6125b with Adapter J 6471 to the seal removal tool.
5. Using slide hammer impact, remove the cooler line seals.

INSTALL OR CONNECT

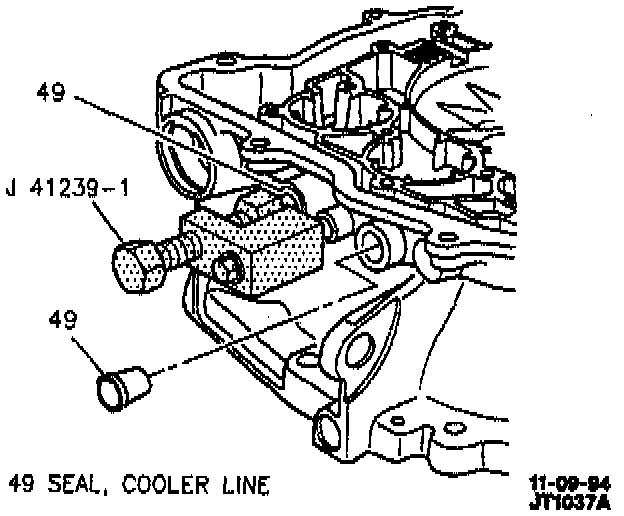

1. Tool J 41239-1 on transaxle case using cooler line bracket bolt.
2. New seal in the case bore.
3. Press new seals in by tightening the cooler line bracket bolt until seal bottoms out in the case bore.
4. Cooler lines into seals and transaxle case.

Tighten
- Transaxle cooler line bracket bolt to 8 Nm (71 inch lbs.).

5. Lower vehicle.
