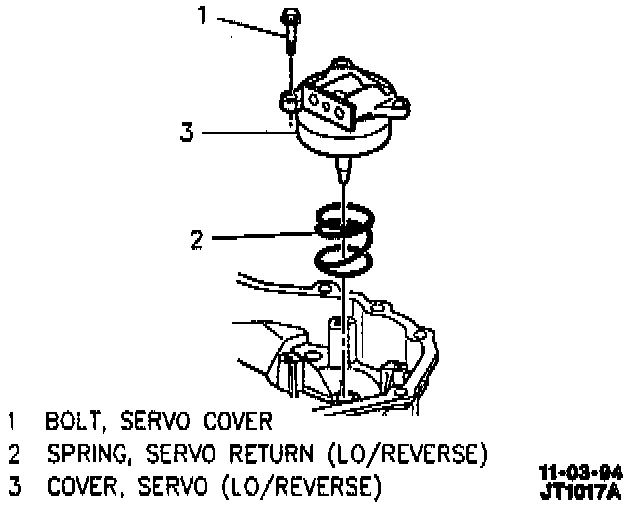

LO/Reverse Servo Assembly

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Raise vehicle and support the vehicle.
3. Servo cover bolts and cover.
4. Snap ring, piston assembly, sealing ring, and servo spring.
- For disassembly of the servo piston assembly, refer to TRANSFER CASE.

INSTALL OR CONNECT
1. Servo spring, sealing ring, piston assembly, snap ring, cover assembly and bolts.

Tighten
- Servo cover bolts on 4T40E transaxle to 12 Nm (9 ft. lbs.).

2. Lower vehicle.
3. Negative battery cable.
