Trailing Arm: Service and Repair

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Trailing arm-to-knuckle bolt, washer, and bushing.

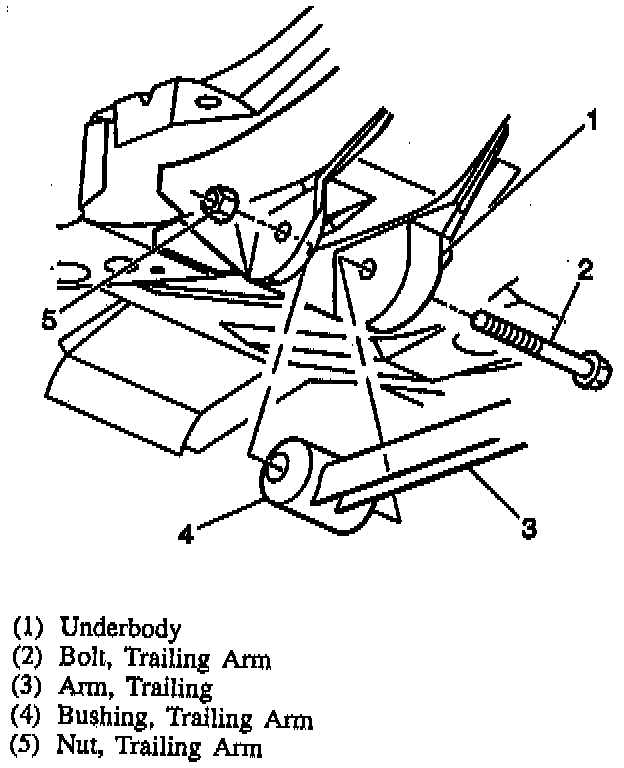

3. Trailing arm to body bolt.
4. Trailing arm from body.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for the application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener tightening specification and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Trailing arm-to-knuckle bolt, washer, and bushing.
2. Trailing arm to body and install bolt.
^ Tighten:
- Trailing arm to body 65 Nm (48 ft lb) plus 120° rotation.
- Knuckle bolt to 69 Nm (51 ft lb).
3. Lower vehicle.
